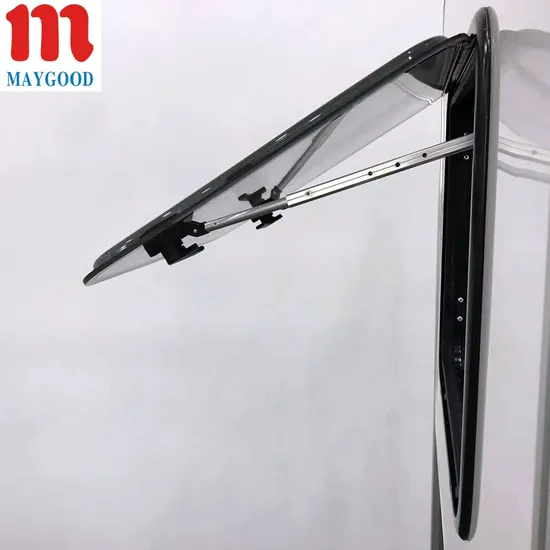

500*300mm Camper Trailer Caravan Aluminum Casement Side and Top-Hung Window

Product Description

Product DescriptionMAYGOOD Caravan Motorthome Trailer RV Round Corner Side Push Out Window
MODEL/MG17RW-AG / MG17RW-TG
SPECIFICATION Outer Frame: High quality aluminum alloy material; powder coated surface treatment;Black, white, gray or customized color.Glass: Double glazed transparent gray anti-UV acrylic or flat tempered glass; With ECE or 3C certificate;Features

1. Equipped with telescopic strut stays, maximum opening angle is 80 degree

2. Inner Frame: Organ type curtain and mesh.

3. Structure: Outer frame and inner frame can be used together or separate.

4. Easy and quick for installation.,

5. With good heat insulation and sound-proof performance.

6. Standard windows for wall thickness from 25 to 35mm(35-45mm,45-55mm or over 55mm)

7. Large range of sizes for choosing

Main Functions
With ventilation,sun shading, anti-insect functions. It can be applied in caravans, modified cars and special vehicles.
Product Parameters

Ser.	Ordering Size (W×H)mm	Cut-out Installation Size (W×H)mm	Inner Frame Overall Size (W+57×H+57)mm	Cut-Out Corner Radius
1	500×300	500×300	557×357	4R70
2	300×500	300×500	357×557	4R70
3	500×450	500×450	557×507	4R70
4	450×500	450×500	507×557	4R70
5	500×500	500×500	557×557	4R70
6	600×600	600×600	657×657	4R70
7	610×450	610×450	667×507	4R70
8	700×300	700×300	757×357	4R70
9	700×550	700×550	757×607	4R70
10	800×500	800×500	857×557	4R70
11	900×450	900×450	957×507	4R70
12	900×500	900×500	957×557	4R70
13	900×550	900×550	957×607	4R70
14	900×900	900×900	957×957	4R70
15	1000×500	1000×500	1057×557	4R70
16	1000×800	1000×800	1057×857	4R70
17	1100×450	1100×450	1157×507	4R70
18	1100×550	1100×550	1157×607	4R70
19	1200×350	1200×350	1257×407	4R70
20	1200×500	1200×500	1257×557	4R70
21	1450×550	1450×550	1507×607	4R70
	Other sizes is coming soon.

Special sizes can be customized.
W/H:height/width of window fitting surface(mm)Installation Instructions
Packaging & Shipping
WHY CHOOSE US?
Our company,Anhui Maygood RV Accessories Co., Ltd, established in 2008, it has been dedicated to designing, developing, producing and supplying RV accessories for the RV industry globally over 14 years. And it is one of the early professional and leading manufacturer of the RV body parts in China. Its product range covers RV window, entry door, roof skylight, roof vent, access door, picinic table, water tanks, steps, air vent etc.
Our company occupies an area of 20000 square meters with standard plants covering 7000 square meters and employs more than 100 staff. It is committed to customer satisfaction through manufacturing and innovating products to the highest level. With our rich experience in this industry, our goods have obtained good reputation from clients all over the world. Currently, our main overseas markets are West European, MIddle East, North America, South America, Asia, Oceania etc. We are proud that we have an effective working team of quality control and new products development, which allows our client to renew their ranges to expand their markets. We are willing to cooperate with fellow traders to develop parts and components related to recreational vehicles.
Welcome to visit our factory. If you have any questions or need any further information regarding our products, please feel free to contact us.
Our Exhibitions
Our Advantages1-Factory Management
MAYGOOD has advanced imported equipment and a Factory Management system that Can Guarantee Our Factory Work Efficiently.
2-Quality Safety Reliability
We have strict quality control and have passed Quality Management System Certificate
3-Excellent Team
Quality guaranteed-100% customer satisfaction
Excellent after-sale service-12-month factory warranty
4-Export Experience
With more than 14 Years of exporting experience, our products have been exported to major foreign markets including North America, Europe, South America, the Middle East, etc.
