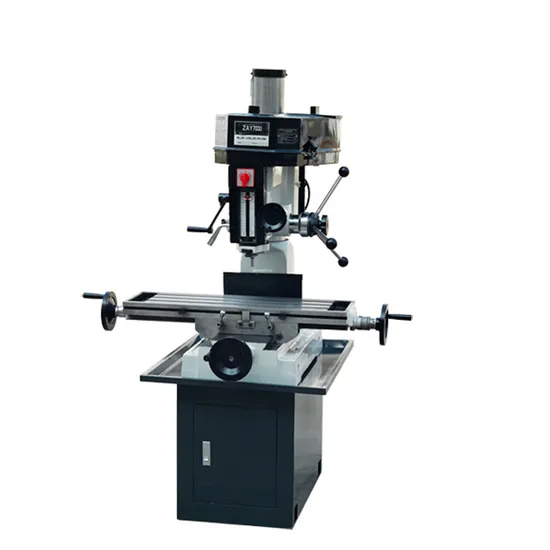

High Quality Metal Mini Bench Drilling and Milling Machine Zay7020

US$700.00-2,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZAY7020
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Layout
Vertical
Number of Shaft
3
Hole Diameter
<50mm
Drill Capacity
20mm
Taper
Mt3
Motor
0.55kw
Spindle Travel
85mm
Ace Milling Capacity
63mm
Transport Package
Plywood Case
Specification
125kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595900
Production Capacity
10 PCS/Month

Product Description


THE MAIN PERFORMANCE CHARACTERISTICS:
driven and round column
Milling, drilling, tapping. Boring and reaming
Headstock swivels 360 horizontally
Micro feed precision
12 steps speed
Adjustable gibs on table precision
Posive spindle lock
Strong rigidity, powerful cutting and precisely positioning
PRODUCT MAIN TECHNICAL PARAMETERS:
MODEL ZAY7020 ZAY7032 ZAY7040 ZAY7045
Drilling capacity 20mm 32mm 40mm 45mm
Face milling capacity 63mm 63mm 80mm 80mm
End milling capacity 20mm 20mm 32mm 32mm
Distance from spindle
nose to table		 435mm 450mm 450mm 450mm
Min.distance from spindle
axis to column		 181.5mm 203.5mm 203.5mm 203.5mm
Spindle travel 85mm 130mm 130mm 130mm
Spindle taper M.T.3 or R8 M.T.3 or R8 M.T.4 or R8 M.T.4 or R8
Step of spindle speed 12 12 12 12
Range of spindle
speed
 50Hz 100-2200 r.p.m 80-2080 r.p.m 80-2080 r.p.m 80-2080 r.p.m
60Hz 120-2640 r.p.m 100-2500 r.p.m 100-2500 r.p.m 100-2500 r.p.m
Swivel angle of headstock
(horizontally)		 360° 360° 360° 360°
Table size 520×160mm 800×240mm 800×240mm 800×240mm
Forward and backward travel
of table		 140mm 175mm 175mm 175mm
Left and right travel of table 290mm 500mm 500mm 500mm
Motor Power 0.55KW 0.75KW 1.1KW 1.5KW
Net weight/gross weight 130kg/190kg 280kg/330kg 283kg/333kg 285kg/335kg
Packing size 620×750×1000
mm		 1020×820×1160
mm		 1020×820×1160
mm		 1020×820×1160
mm
