US$2.00-8.00
|
1,000 Pieces
(MOQ)
|
Basic Info.
Certification
TUV, RoHS, ISO9001, CCC
Internal Structure
On-Off Type
Power Source
Half-Bridge Type
Experience
20 Years′experience
Quick Delievery
15-25 Days
Warranty
3 Years′ Warranty
Packaging
PE Bag,White Box,Carton
Transport Package
PE Bag, White Box, Carton
Specification
UL/CUL/TUV/GS/CE/CCC
Production Capacity
2, 000 PCS/Day
Product Description
We are a professional manufacturer of switching power adapters, or AC adapters/adaptors, or switching power supply, or AC/DC adapters/adaptors, or AC/DC power adapters, or AC to DC power adapters, or plug-in adapters, or wall mount adapters/adaptors, or just SMPS, etc.

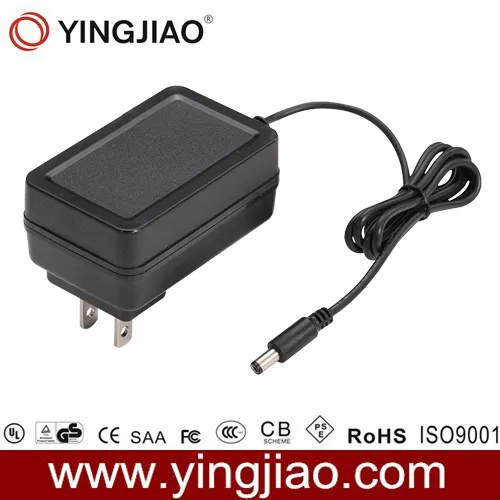

Model: YS16U series
Universal Input: 100-240V AC 50/60Hz
Rated Power : 20W max.
Features:
Safety: UL/CUL
EMI: CLSPR 22 / FCC /VCCI CLASS B
High efficiency & low power consumption
RoHS compliant
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing
Mechanical:
Dimensions: 70mm (L)*45mm (W) *31mm (H)
N.W.:90g
AC Plug: American two flat pin
Output plug: optional
Output Load Voltage(V) | 5 | 6 | 7.5 | 9 | 12 | 13.8 | 15 | 18 | 24 |
Max. Load Current(A) | 3 | 2.5 | 2 | 2 | 1.6 | 1.4 | 1.25 | 1 | 0.75 |
>>
