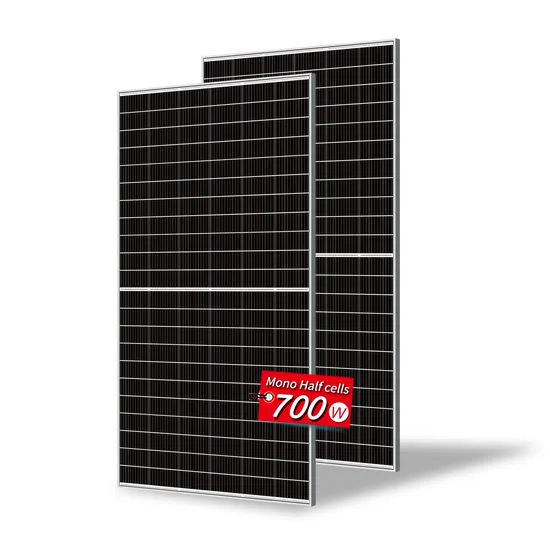

High Quality Solar Panel 700W Mono Solar Panel

US$0.20

10,000-499,999 Pieces

US$0.19

500,000-999,999 Pieces

US$0.18

1,000,000+ Pieces

Basic Info.

Model NO.

RS700M-132HC

Application

Home Appliances, Solar Energy Storage Systems

Condition

New

Certification

EST, ISO, CB, CE

Material

Monocrystalline Silicon

Weight

34.4kg

Solar Cell

5bb 6bb 9bb 10bb 12bb Mono

Glass

3.2mm, High Transmission, Ar Coated Heat Strengthe

Junction Box

IP68 Rated

Cable

4mm2; Portrait/Landscape Length

Cell Orientation

132cells(6*22)

Connector

Compatible Mc-4/Male/Female/Fuse

Frame

Silver / Black Anodized Aluminium Alloy

Tpt Backsheet

White/Black Backsheet

OEM

Acceptable

Transport Package

31PCS/Pallet, Wooden Box

Specification

2385*1303*35 mm opt

Trademark

Rosen Solar/OEM/ODM

Origin

China

HS Code

854140

Production Capacity

10000000watt/Week

Product Description

Product Description
Technical Specification Data(STC) of Solar Panel

Model of Solar Panel	RS650M-132HC	RS660M-132HC	RS680M-132HC	RS690M-132HC	RS700M-132HC
Peak Power Watts-Pmax(Wp)*	650	660	680	690	700
Maximum Power Voltage-Vmpp(V)	37.9	38.3	39.1	39.5	39.9
Maximum Power Current-Impp(A)	17.16	17.24	17.40	17.48	17.55
Open Circuit Voltage-Voc(V)	45.0	45.4	46.2	46.8	47.2
Short Circuit Current-Isc(A)	18.39	18.47	18.63	18.71	18.79
Module Efficiency (%)	20.9	21.2	21.9	22.2	22.5
Power Output Tolerance-Pmax(W)	0~+5
Temperature Coefficient of Pmax	-0.34%/ºC
Temperature Coefficient of Voc	-0.26%/ºC
Temperature Coefficient of Isc	0.05%/ºC
STC	Irradiance 1000W/m2, Cell Temperature 25ºC, Air Mass AM1.5. *Measuring tolerance: ±3%.

Detailed Images of Solar Panel
Packing & Delivery
Solar Panel Packing Details : 31pcs per pallets or in wooden box
Delivery Details : 5-7days
Factory of Rosen Solar
Projects of Rosen Solar
