Mattress Computer Chain Stitch Multi Needle High Quilt Precision Mattress Quilting Machine

US$39,600.00-47,500.00 1 Set (MOQ)

Basic Info.

Model NO.

HY-W-JH

Total Power Required

7kw

Gross Weight

4500kg

Knitting Machine Cut

Hy-W-Jh

Thickness of Quilting

Less Than 80 mm (for All Patterns)

Transport Package

Plywood Pallet

Specification

21.36cbm

Trademark

Xidengbao

Origin

Guangdong China(Mianland)

HS Code

8452219000

Production Capacity

25 Sets/Month

Product Description

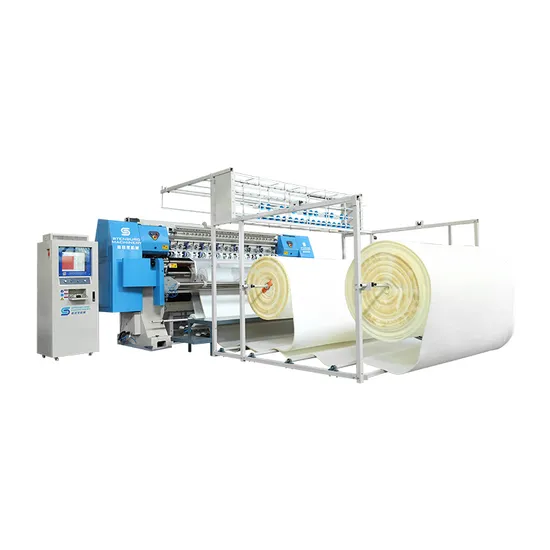

HY-W-JH Computerized Chain Stitch Multi-Needle Quilting Machine
HY-W-JH High Speed Computerized Chain Stitch Multi-needle Quilting Machine is widely used for quilting high-quality mattresses, quilt covers, and household ornaments. Different patterns are available
Technical Specification:

Dimension (LWH)	480012002000mm
Width of quilting	2450mm
Space between needle rows	50.8, 76.2, 127(5" ) 76.2, 76.2, 152.4(5" )
Space between needles	25.4mm
X-axis movement distance	410mm
Thickness of quilting	≤ 80mm (for all patterns)
Length of step	3-8mm
Speed between production	60-230m/Hour
Model of needle	24/180 23/160 22/140 21/130
Speed of main shaft	200-990RPM
Power	7KW
Voltage	380V /220V 50HZ/60HZ
Machine weight	4500KG
