High Flow Rate Agricultural Farm Irrigation Diesel Engine Driven Centrifugal Water Pump

US$500.00 1 Piece (MOQ)

Basic Info.

Model NO.
DQI
Max.Head
>150m
Max.Capacity
>400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Since Irrigation Centrifugal Pumps
Impeller
Closed
Usage
Pump, Pumps, Condensate Pump, Slurry Pump, Circulating Pump, Irrigation Pump
Voltage
380/400/440/600V or Customized
Frequency
50/60Hz
Size
Customized
Material
Cast Iron/SS304/SS316/SS316L
Shaft Seal
Packing Seal/Mechanical Seal
Connection Type
Belt/Direct Coupling
Driven
Electric Motor/Diesel Engine
Feature
Energy Saving
Color
Color
Function
Drain
OEM
OEM Services Provided
Certificate
CE ISO
Head
4.6-133 M
Flow
3.8-1200 M3/H
Power
0.55-132 Kw
Transport Package
Wooden Cases
Specification
in different flow and head
Trademark
First Pump
Origin
China
HS Code
841370
Production Capacity
5000sets Per Year

Packaging & Delivery

Package Size
75.00cm * 50.00cm * 60.00cm
Package Gross Weight
150.000kg

Product Description

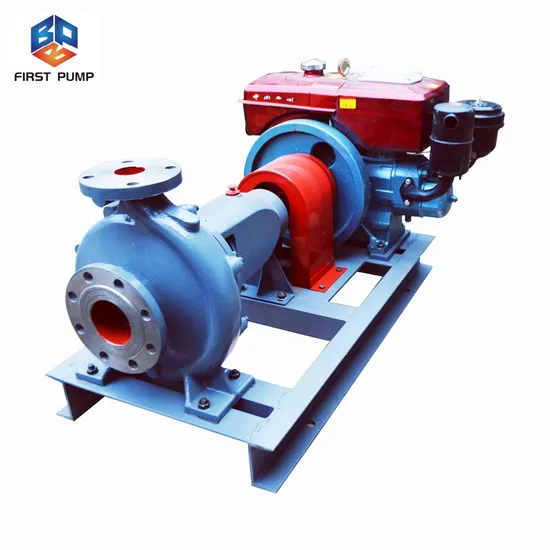

High Flow Rate Agricultural Farm Irrigation Diesel Engine Driven Centrifugal Water Pump
Product Description The ISO2858 international standard is met by the QI series single stage single suction centrifugal water pumps (end suction pumps).The open back structure makes it simple to remove the rotor.Discharge on top center, pump body supported by anchor ensure robust structure and maximum resistance to off-center and deformation induced by line stress.Make sure there is no overload design and that the performance is stable.Adopting a national standard hydraulic model ensures high operational efficiency and anti-cavitation performance.Packing seals and mechanical seals are both available.

Type Flow Head Power
(m3/h) (m) (KW)
QI50 3.4-15 3.7-68.8 0.55-11
QI65 6.8-30 3.7-126.8 0.55-30
QI80 13.6-60 3.6-128 0.55-45
QI100 27.3-120 3.4-115.5 1.5-75
QI125 56-240 8.5-132.5 2.2-110
QI150 99-240 12.4-57.5 15-55
QI200 197.7-460 14.8-55.8 30-90
QI 250 320-760 22.6-52 75-132
QI 300 530-1200 21.9-38 90-132
Company Profile
Detailed Photos
FAQ

(1). Q: Are you a trading company or manufacturer?
A: Beijing First Pump Co., Ltd is a real integrated set of industry and trade company, producing with our own factory.

(2). Q: What are your factory workshops?
A: Our factory produce includes casting, mechanical process, lathe process, heat treatment, assembly, test, etc.
Warmly welcome to visit & test my factory any time.

(3). Q: How about your pump price?
A: We are sure our price is factory price, and insist on high quality for our long-term cooperation.

(4). Q: How does your factory do regarding quality control?
A: Quality is a priority. we always attach great importance to quality control from the very beginning to the very end.Our factory has 15~30 QC.

(5). Q: How to do if the pump or parts have operation problems within your warranty?
A: Tell me details timely, and show me pictures, we will send you the pump solution at once without any hesitation.

(6): Q: We don't know which pump model we need, can you help us?
A: yes, please tell me your detailed requirements, including liquid, flow rate, head, etc
our engineers' team will calculate & select the most suitable pump model for you, and offer a pump solution for you.

(7). Q: What are your advantages, and why should I choose you?
A: Higher Quality, our parts have a 30% longer life than the originals
Short Delivery Time, for normal parts, we have stock in our warehouse
Competitive Price, we can help you cut down the cost by 30% or more
Best Services, we have a technical department, a quality control department, and a professional sales team, we will offer professional service for you any time.
