2m Metal Sheet Servo Driven Tube Pipe Bender Machine CNC Cutting Fold Machine

US$75,000.00-80,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

DES-2000

Warranty

1-year

Condition

New

Certification

RoHS, ISO 9001:2000, ISO 9001:2008, CE

Automation

Automatic

Suitable for

Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Type

Cnc Bending Machine

Bending Length

2000mm

Bending Height

175mm

Bending Thickness

0.35mm

Bending Degree

0-360°

Accuracy of Bending Angle

±1°

Accuracy of Feeding Length

±0.1mm

Clamping Method

Sucked or Pressing

Electrical Components

German Imported

Windows CE

Noise Level

≈40dB

Peak Power

22kw

Weight

18.5tons

Transport Package

Pallet, Foam and Plastic Film

Specification

5900* 2900* 3200MM

Trademark

Dontzer

Origin

China

HS Code

8462219000

Production Capacity

300 Sets/Year

Packaging & Delivery

Package Size

1203.00cm * 235.00cm * 239.00cm

Package Gross Weight

18500.000kg

Product Description

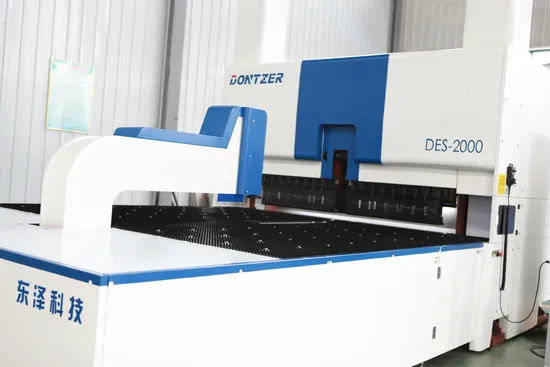

Product Photos
Product Parameters

Model		DES-1200	DES-1400	DES-2000	DES-2500
Max. Continuous Bending Speed		≤0.5sec/each bending	≤0.2sec/each bending	≤0.2sec/each bending	≤0.2sec/each bending
Max. Bending Length		1200mm	1400mm	2000mm	2500mm
Bending Height		175mm	175mm	175mm	175mm
Max. Bending Thickness	stainless steel	1.0mm	1.0mm	1.0mm	1.0mm
	Carbon steel	1.5mm	1.5mm	1.5mm	1.5mm
	aluminum	1.6mm	1.6mm	1.6mm	1.6mm
	Or it can be customized.
Min. Bending Thickness		0.35mm	0.35mm	0.35mm	0.35mm
Bending Degree		0-360°	0-360°	0-360°	0-360°
Accuracy of Bending Angle		±1°	±1°	±1°	±1°
Accuracy of Feeding Length		±0.1mm	±0.1mm	±0.1mm	±0.1mm
Operating system		Windows CE	Windows CE	Windows CE	Windows CE
Clamping Method		Sucked or pressing	Sucked or pressing	Sucked or pressing	Sucked or pressing
Throat Depth		180mm or customized	180 mm or customized	180 mm or customized	180 mm or customized
Min. One-step Forming Size on All Four Sides		150*150mm	150*150mm	150*150mm	150*150mm
Min. One-step Forming Size on Two Sides		220*220mm	220*220mm	220*220mm	220*220mm
Noise Level		≈40db	≈40db	≈40db	≈40db
Outline Dimension (mm)		3200* 2100* 2900	3400* 2300* 2900	5900* 2900* 3200	6000* 3400* 4200

Detailed Photos

Bending model
Product category
Certifications
Company Profile

FAQ
1. How about the delivery time?
Generally it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and the punched drawing.
