High Quality Android Handheld Mobile Data Collector Terminal

Product Description

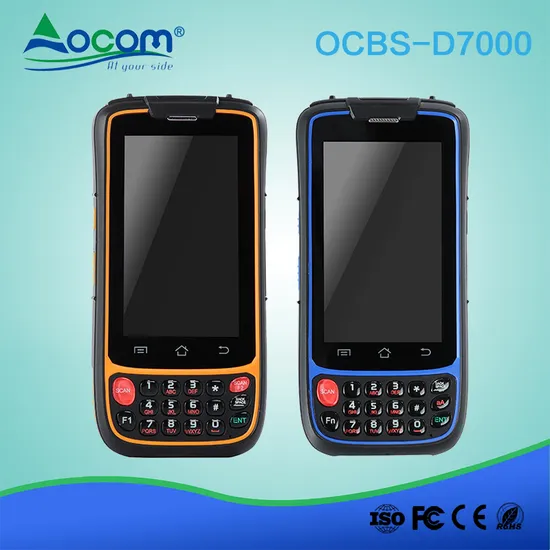

High quality Android handheld mobile data collector terminal (OCBS-D7000)
This industrial pda support android4.2.2 Operation System,and aslo have 1D/2D Barcode Scanner for Option, the CPU is Cortex A7 1.2GHz dual-core,it also has RFID LF/HF/UHF/ for optional.
And it is the hot selling portable data collector industrial pda in China.
FEATURE:Android 4.4.21GB RAM, 8GB ROM4.0 in. 480*800 WVGA IPS Screen 1D/2D Barcode Scanner for optionalRFID LF/HF/UHF/ for optionalNumeric&Functional Keypads Support 3G/Wifi/GPS/BluetoothRear Camera 5 MP, auto-focus with LED flashRechargeable li-ion polymer, 3.7V, 5200mAh Battery Rugged IP65/1.5 m Drop Tolerance

SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Dimension	158mm(H)x75mm(W)x28mm(D)±2 mm
Weight	Net Weight :300g (including battery&wrist strap)
Display	4.0 in. TFT-LCD(WVGA 480x800)touch screen with backlight
Backlight	LED backlight
Keypads	3 TP keys, 17 function keys, 4 side buttons
Expansions	2 PSAM, 1 SIM, 1 TF
Battery	Rechargeable li-ion polymer, 3.7V, 5200mAh
PERFORMANCE CHARACTERSTICS
CPU	Cortex A7 1.2GHz dual-core
Operating System	Android 4.4.2
Storage	1GB RAM, 8GB ROM, MicroSD(max 32GB expansion)
USER ENVIRONMENT
Operating Temp.	-20ºC to 50ºC
Storage Temp.	-20ºC to 70ºC
Humidity	5%RH to 95%RH(non-condensing)
Drop Specifications	5ft./1.5 m drop to concrete across the operating temperature range
Sealing	IP65, IEC compliance
ESD	±15kv air discharge, ±8kv direct discharge, ±8kv indirect discharge
DEVELOPMENT ENVIRONMENT
SDK	HHW Software Development Kit
Language	Java
Environment	Android Studio or Eclipse
DATA COMMUNICATION
WWAN	WCDMA(850/1900/2100MHz), GSM/GPRS/Edge 850/900/1800/1900MHz)
WLAN	IEEE 802.11 b/g/n
WPAN	Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0
GPS	GPS(embedded A-GPS), accuracy of 5 m
DATA CAPTUER
BARCODE READER(OPTIONAL)
1D barcode	1D laser engine		Honeywell N431x
	Symbologies		All major 1D barcodes
2D barcode	2D CMOS Imager		Honeywell N6603
	Symbologies		PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.
COLOR CAMERA
Resolution	5.0 megapixel
Lens	Auto-focus with LED flash
RFID READER(OPTIONAL)
RFID LF	Frequency		125KHz/134.2KHz(FDX-B/HDX)
	Protocol		ISO 11784&11785
	R/W Range		2cm to 10 cm
RFID HF	Frequency		13.56MHz
	Protocol		ISO 14443A&15693
	R/W Range		2cm to 8cm
PSAM SECURITY(OPTIONAL)
Protocol	ISO 7816
Baudrate	9600, 19200, 38400,43000, 56000, 57600, 115200
Slot	2 slots(maximum)
ACCESSORIES
Standard		1xPower Supply 1xLithium Polymer Battery 1xDC charging cable 1xUSB data cable
Optional		Carry Case

Power adaptor for option:
Europe, British, America, Australia, Asia etc.

Production capacity and lead time:
We have strong production capacity; we can produce thousand of printers and barcode scanners per day. Normally, our lead time between 1-5 days.

Shipping method:
Air, Sea, Express (DHL, FedEx, UPS, EMS, TNT and so on)

Warranty:
12+1 months of shipment normally. Some designated models can have as long as 24 months warranty. Spare parts can be provided for mass order.

Payment term:
T/T in advance, Western Union, PayPal, Escrow, L/C, Cash, etc
