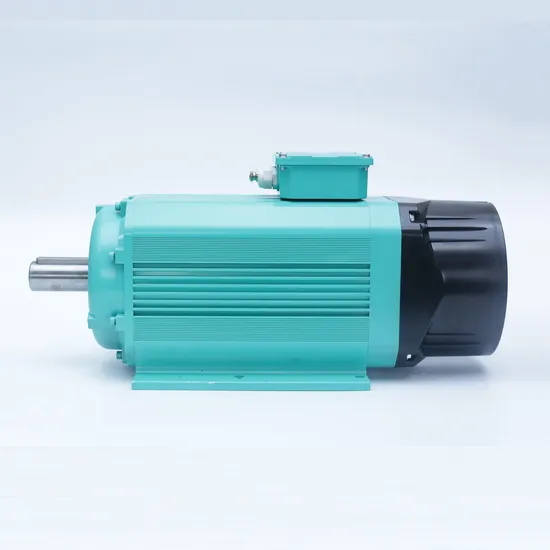

Xntz 132L Rare-Earth Material Premium Efficiency Permanent-Magnet Synchronous DC Motor 15kw

Product Description

Workshop
Product Description
Product Description
In last few years, our company have paid a plenty of human resource, money, and time to develop new products. Now we can finally introduce to everyone our newest motor - XNTZ series Permanent-magnet synchronous motor.
The XNTZ series permanent-magnet synchronous motor is a wide - speed adjustable driven product characterized by high efficient, energy-saving and high power density.
The motor has adopted the permanent-magnet material of rare-earth NdFeB, supply the power with an inverter. It have the character of fast and accurate dynamic response, wide adjustable of range, stable torque and rotating speed, small volume, light weight, less power loss, high torque, step-less speed regulation, reversible adjustable, high power factor, high efficiency, etc. The motor is able to save 35% electricity compares to normal IE1 motors, after using this motor for one year, you can easily get the motor cost back from the electricity! Compared to the asynchronous motor, the XNTZ series motor is able to keep a stable high-efficient and high power factor while the motor's load varies extensively, and it is very appropriate for industrial fans, pumps, pavement construction machines, air compressors, etc.
Product performance and characteristics: 1. High efficiency and energy saving Using high performance rare earth permanent magnet material, and special stator slot shape and rotor structure, making the motor efficiency and able to reached IE4 standard. Compares to normal IE1 motors, this motor is able to save 30%-40% electricity; 2. High performance Less inertia, large starting torque wider operating frequency; 3. Small volume A more compact volume: compared with the same power asynchronous motor, the frame is smaller; 3. High reliability Lower current, less temperature rise, less cooper loss, longer life; 4. Modular design Flexible configuration of many modules, such as the independent drive fan, encoder, etc; 5. Applicability Able to used in many abominable environment, even for a long-time and low-speed operation, frequent start and other occasions; 6. Versatility Same structure as the asynchronous motor, it can replace the asynchronous motor directly. 7. Simple control The motor use variable frequency vector control, make it high control accuracy and less fault. Product Parameters
Technical Data

TYPE	OUTPUT		Voltage (V)	Current (A)	Frequency (HZ)	Speed (r/min)	Eeff (%)	Power Factor (cosΦ)	Torque (N.m)
	HP	KW
XNTZ-120-90S	1.0	0.75	380	1.5	200	3000	91.5	0.98	2.4
	1.5	1.1	380	2.1	200	3000	92.5	0.98	3.5
	2.0	1.5	380	3.0	200	3000	92.5	0.98	4.8
	3.0	2.2	380	4.2	200	3000	93.5	0.98	7.0
XNTZ-120-90L	4.0	3.0	380	5.7	200	3000	94	0.98	9.5
	5.5	4.0	380	7.5	200	3000	94.2	0.98	12.7
XNTZ-180-112S	5.5	4.0	380	7.1	200	3000	94	0.98	12.7
	7.5	5.5	380	10	200	3000	94	0.98	17.5
XNTZ-180-112L	10	7.5	380	13.6	200	3000	94.5	0.98	24
	15	11	380	19.7	200	3000	95	0.98	35
	20.5	15	380	27	200	3000	95.2	0.98	48
XNTZ-210-132S	7.5	5.5	380	9.6	200	3000	94.5	0.98	17.5
	10	7.5	380	13.2	200	3000	95	0.98	24
	15	11	380	19	200	3000	95.5	0.98	35
XNTZ-210-132L	20.5	15	380	26	200	3000	95.5	0.98	48
	25	18.5	380	32	200	3000	95.5	0.98	59
	30	22	380	38.5	200	3000	96	0.98	70
