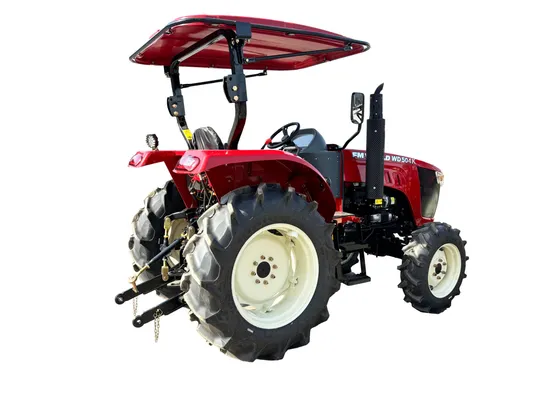

Wd504 Harvesting Machinery Agricultural Walking Farm Tractor

Product Description

Feature
1.High quality engine with strong power but low fuel consumption
2.Adopt transmission 8F+8R shuttle for easier operation,which caters to different needs
3.Axles with outstanding sealing perforamnce ensure tractors working well in water or deep muddy field
4.By adopting dual clutch, walking and PTO power are seperated which brings a more flexible working style
5.High quality bearings are used for long prolonging working life
6.ROPS&Canopy are equipped as standard, while cabin and air brake are optional for comfor and road transport
Parameter

Model		WD454K	WD504K
Structure		4*4
Engine	Engine Power@speed(HP)	45@2400	50@2400
	Engine Type	4 Cylinders, Inline, Vertical, Water-cooled, diesel engine
	Fuel Tank Capacity(L)	70
	Battery	12V
	Air Cleaner	Dry
Transmission	Gears	Shuttle 8F + 8R
	Clutch	Dual Clutch
	Brake	Mechanical disc
	Differential Lock	Pin Type, Mechanical
PTO System	Direction of turning	Clockwise,viewed from tractor rear
	Diameter of PTO Shaft(mm)	35
	PTO Speeds(rpm)	540/760
Hydraulic system	3 Point Hitch	Category II& I
	Control System	Position ,draft, float
	Rear Auxiliary Remote Valves	2 groups
	Lifting Capacity(KG)	>=1191	>=1324
Other Parameters	Steering	Hydraulic Power Steering
	Dimension(mm) Canopy	3650*1572*2650
	Gorund Clearance(mm)	440
	Tires(F/R)	8-18/13.6-24 R-1T, other size optional
	Wheel Base (mm)	1845
	Wheel Track (F/R)(mm)	1200~1500/1200~1500	1200~1500/1200~1500
	Ballast Weight Front/Rear(kg)	144/80
	Min Operation Weight(kg)	2020(canopy)/2200(Cabin)

---
