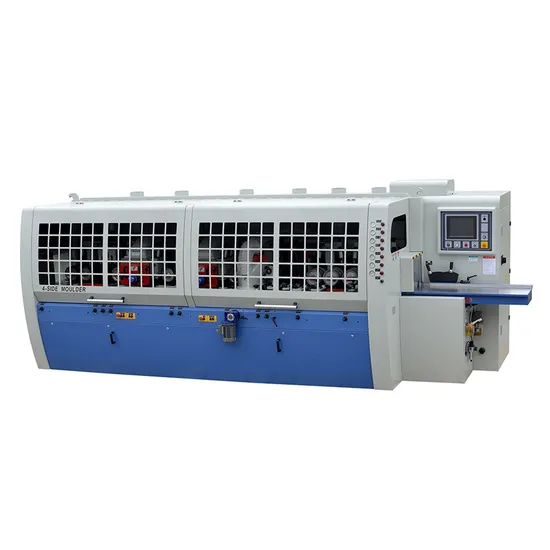

Hicas High Auto Woodworking CNC Wood Four Side Moulder Planer for Sale

Product Description

HICAS High Power Motor Four Side Moulder Planer for Wood Product Description
Product Parameters

Name	Four Side Planer
Model	HC633H-D
Working Width	50-330mm
Working Thickness	20-250mm
Min. Working Length (Intermittent/Continuous)	700/300mm
Feeding Speed	8-36m/min
Spindle Diameter	50mm
Rotation speed of spindle	6000r/min
Cutter Dia.First Bottom Cutter	140mm
Left/Right Vertical Cutter	140-230mm
The First Upper Cutter	140-230mm
Back Bottom Cuter	140-230mm
Total Power	84kw
The First Bottom Cutter	11kw
Left Vertical Cutter	11kw
Right Vertical Cutter	11kw
The First Upper Cutter	15kw
The Second upper Cutter	11kw
The Second Bottom Cutter	11kw
Feeding Motor	11kw
Beam Lifting Power	1.5kw
Upper cutter lifting motor	0.75kw
Radial adjustment of the vertical spindle	0.37kw
Rear pressing plate elevation	0.37kw
Suction hood dia.	6*180mm
Air Supply Pressure	0.6mpa
Overall Dimensions	6000*2280*2090mm

Machine Specification:
1.The machine adopts casting body, configures high-power motor, realizes heavy planing, and good planing quality.
2.The use of fully enclosed safety guards, safety door, low working noise, safety and environmental protection.
3.The movable working table and the front worktable plate are made of hardened steel alloy plate and wear-resistant.
4.The main shaft adopts heavy cutting structure and the main shaft diameter is 50mm. Its main shaft has good rigidity and can achieve strong planing.
5.Use 140mm diameter feeding wheel and multiple groups bottom-active roller feeding, feeding strong and powerful.
6.Each cutter controls and adjust width and thickness adopts PLC computer touch screen numerical control system, cylinder locking and the operation is convenient.
7.Feeding adopts the front, middle and rear three cylinders to press the material, the pressure is stable, and the adjustment is convenient.
8.Upper cutter front pressing, vertical cutter front and side pressing mechanism are all use cylinder presssing, thus pressure stability, easy adjustment.
9.The second bottom cutter has a multi-saw function.
10.Configure with two manual lubrication pumps to centrally lubricate the working table and the moving rail respectively, thus to improve the feeding smoothness and the flexibility of rail movement.
11.All feeding and pressing adopts segmented cylinder press, centralized arrangement and convenient operation.
12.Feeding adopts frequency control, feeding speed up to 6-36m/min.
13.All electrical components, transmission parts are using good brands and components, stable performance. Detailed Photos

Certifications
Packaging & Shipping
Company Profile
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world. HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback
