Industrial China High Performance CNC Facing Lathe 2500 mm Diameter Metal Lathe for Machining Shipyard Propeller

Product Description

Product Description
Industrial China High Performance Cnc Facing Lathe 2500 Mm Diameter Metal Lathe For Machining Shipyard Propeller

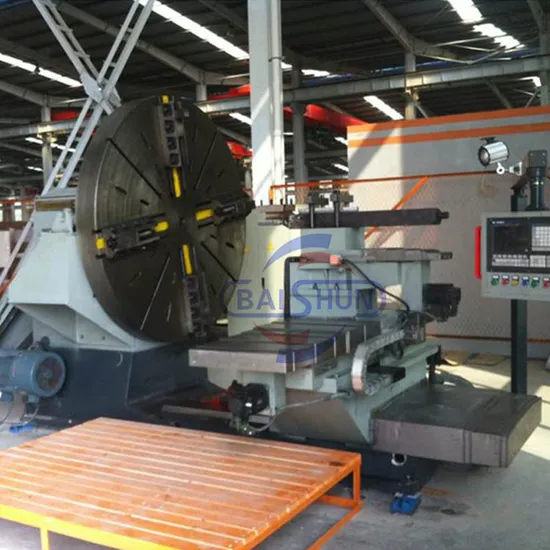

The face lathe include a large chuck or faceplate to hold the flange securely during machining, a range of cutting tools to accommodate different sizes and shapes of work piece, and controls to adjust the depth and angle of the cuts as needed, and is especially suitable for low speed high load cutting . Featuring high carrying capacity , high rigidity , optimal appearance design and easy operation , it mainly be used in turning neutral mechanical parts with a relatively large diameter , such as tire mold large diameter flange tube plate , turbine parts , end enclosure , etc . And widely applied in chemical engineering, heavy duty machining , automobile manufacturing, mining and railway equipment and aviation parts processing and manufacturing, Normally there are conventional type and CNC type for Choice.
Product Parameters

CK60 series - Flange Lathe Floor Type CNC Lathe
Type	Unit	CK6016	CK6018	CK6020	CK6025	CK6030
Swing Diameter	mm	φ1600mm	φ1800mm	φ2000mm	φ2500mm	φ3000
Chuck Diameter	mm	φ1000mm	φ1250mm	φ1600mm	φ2000mm	φ2500mm
Chuck jaw seat length	mm	400mm	400mm	500mm	500mm	500mm
Work-piece length	mm	500mm	500mm	500mm	750mm	1000mm
Work-piece Weight	T	2T	2T	3T	3T	3T
Spindle Diameter	mm	φ190mm	φ200mm	φ220mm	φ220mm	φ260mm
Spindle speeds	r/min	14-108r/min	14-108r/min	4-160r/min	4-106r/min	4-106r/min
X Axis Stroke	mm	800mm	900mm`	1000mm	1250mm	1500mm
Z Axis Stroke	mm	350mm	350mm	350mm	350mm	350mm
X Axis Rapid Speed	mm/min	2500mm/min	2500mm/min	2500mm/min	2500mm/min	2500mm/min
Z Axis Rapid Speed	mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min
Cutting Tool Carriage Size		280*280	280*280	300*300	300*300	300*300
Cutting Tool Bar Size	mm	40*40mm	40*40mm	40*40mm	40*40mm	40*40mm
Motor Parameters
Main motor power	KW	11KW	11KW	15KW	18.5KW	22KW
Feed motor power	KW	2.3KW	2.3KW	2.3KW	2.3KW	2.3KW
Lubrication motor power	KW	0.37KW	0.37KW	0.37KW	0.55KW	0.55KW
Machine Accuracy
Cylindricity	mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm
Platness	mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm
Roughness	Ra	Ra3.2	Ra3.2	Ra3.2	Ra3.2	Ra3.2
L*W*H Machine Dimensions	mm	2800*1850*1800mm	2800*1950*1900mm	2800*2000*2000mm	3250*2650*2650mm	3500*3300*3200mm
Machine Weight	T	6T	9.5T	11T	12.5T	15T

Company introduction:
Henan Baishun Machinery Equipment Co.,Ltd is a professional manufacturer, which especially work for Slotting machine,Vertical lathe machine, CNC Vertical lathe machine, CNC Horizontal lathe machine, Roll lathe machine, Gear hobbing machine, Pole erection machine, Shredder machine,etc. With 14 years experience for lathe machines, we have export our products to Peru, Brazil, Chile, Mexico, Italy, Indonesia, Sri Lanka, Russia, and Uzbekistan.ect.
Our company attaches great importance to international technical exchanges and cooperation, has introduced advanced technology and craft from United States, Germany, Australia and other countries, establishes the international advanced production lines and first-class modern testing base. Welcome all friends visiting and communicating and cooperating.
Customer Case:
Customer Feedback:

Packing&Delivery:
FAQ
Q: Why Choose Us?
1). We are manufacturer with own factory for many years with CE Certification
2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).
Q: What Is Our Service?
1). Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
2). Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
3). After-Sale Service
We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.
Q: How About The Motor?
A: We use domestic Chinese-famous motors,but you can choose Siemens or other brand motor as your requirement.
Q: How long does it take to make a product?
A: It depends on size and type of machine.Normally, small size machine takes around 7-30 days, larger one takes around 30-60 days.
A:Yes, we provide testing videos in factory for each machine before shipment.
We are a direct-sale lathe machine manufacturer, not a trading company,
which means we can offer you high quality product with the best prices.
Welcome get in touch with us:)
Tel:+86 18003851898

---
