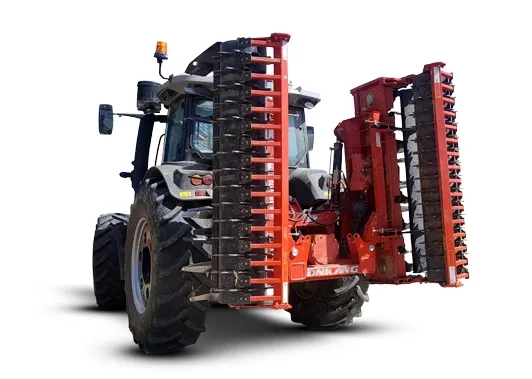

1bq-4.1 Foldable Power Driven Rake/Tractor Accessories/Agricultural Machinery

US$8,800.00-29,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
1BQ-4.1
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Arable Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
CE
Color
Red
Warranty
One Year
Homework Width
4.2(Meters)
Number of Rotors
16
Minimum Required Power Kilowatts (Horsep
162/220
Maximum Allowable Power Kilowatts (Horse
191/260
Quantity of Rake Blades
32
Transport Package
Container
Specification
1700× 4220× 1400
Trademark
DangKang
Origin
Made in China
HS Code
8432100000

Product Description


Reasonable structural design and high-strength material selection and configuration, while ensuring its own reliability and stability, have the advantages of Kangdong power rake in land consolidation: it has better crushing/leveling/cleaning/compaction/soil moisture effects than similar products at home and abroad for agricultural requirements of the soil seedbed... It has laid a good foundation for crop growers to increase production and income. The specific characteristics are as follows:
1. Crushing: Using 16mm thick alloy steel rake blade (or optional coated rake blade), after special treatment, it has good wear resistance and torsion resistance; Adopting fast blade changing and encrypted drum design, it has two more drums than ordinary products, which lays the foundation for improving the soil crushing effect and service life, especially for hard soil blocks or soil with stones on the clay ground, it can better demonstrate its own advantages compared to rotary tillers/heavy harrows/joint tillage machines and similar products.
2. Flattening: The horizontal rotation of the array rake teeth, combined with the operation mode of large flat soil beams, is beneficial for leveling the strip-shaped soil ditches and side ditches formed by the large plow after plowing (rake teeth horizontal rotation - horizontal uniformity! (Dangkang's ultra wide flat soil beam) - vertical leveling), which can completely solve the problems that other machines cannot solve, such as wave undulations or horizontal unevenness. The leveling effect after operation is very good!
3. Clean: The stubble burying effect is good, and the unique rotating structure and blade shape of the power rake further presses the straw that has been deeply plowed into the soil (making the surface clean), which is more conducive to the decay of straw and increases soil fertility. In addition, weeds are also pushed into the bottom layer of the plow, reducing the germination rate of grass seeds and saving the use of herbicides,
4. Practicality: The compaction effect is good, and the heavy-duty vibration roller equipped with the power rake can ensure that the broken and leveled soil blocks are further compacted (which is conducive to good water and moisture retention effect)
5. Soil moisture: Based on the operational characteristics of the Dangkang power rake mentioned above, the power rake can fully demonstrate its operational advantages, thereby creating a good planting environment for crop sowing, which is conducive to controlling the soil moisture and crop growth factors (after the large plow is plowed, the land is leveled up and down, which is exactly what agricultural crops need, and the crop roots penetrate deep into the bottom layer of the plow, which is conducive to the upward movement of water in the bottom layer of the plow, and it is not easy for seedlings to wither during drought; while during flood, water can fully penetrate the bottom layer of the plow, conserving excess water, and flood prevention operations are also obvious).
