Agricultural Gleason Bevel Gears Factory High Quality Shredder Farm Lawn Mower Gearbox

US$200.00-500.00 1 Piece (MOQ)

Basic Info.

Model NO.
KLF-GC290
Certification
ISO 9001:2008
Application
Paddy Field, Fruit Tree, Tea Tree, Lawn, Farmland
Cutting Height
10-80mm
Cutting Width
2100mm
Working Way
Rotary
Type
Tractor
OEM
Available
Ratio
1:3/1:2.4/1:1.8
Input
163HP/272HP/190HP/313HP/218HP/367HP
Input r.p.m
540/1000
Output r.p.m
1620/3000/1080/2400/972/1800
Input N.M
2122/1910/2476/2196/2829/2578
Output N.M
707/637/1032/915/1572/1432
Kw
120/200/140/230/160/270
Transport Package
Crate
Specification
Cast iron
Trademark
KADIVA
Origin
Zhejiang China
HS Code
8483409090
Production Capacity
50000PCS/Month

Product Description

Agricultural Gleason Bevel Gears Factory High Quality Shredder Farm Lawn Mower Gearbox Product Description

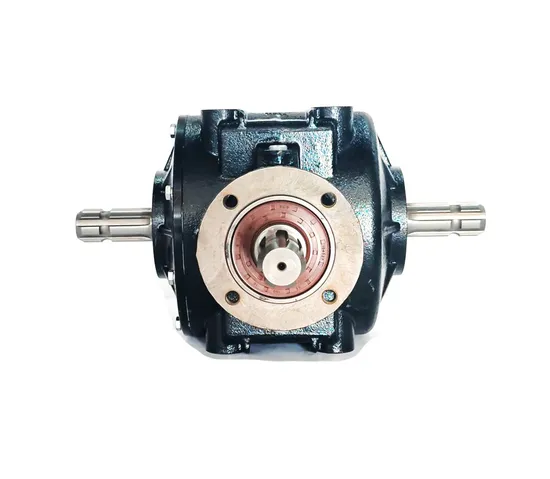

KLF-GC290 Gearboxes for agricultural residual film recovery machine
KLF-GC290 offers a variety of transmission ratios, adaptable to a wide range of different types of agricultural machinery equipment, including straw crushers and agricultural film recycling machines. The Gleason bevel gears are manufactured with high precision, ensuring high mesh accuracy, minimal transmission loss, and high efficiency in energy transfer. The product is designed with a one-way clutch mechanism. During operation, when the cutter shaft is running at high speed, if the tractor suddenly stops the power input, the cutter shaft's inertia can be too great. The one-way clutch effectively protects the gears and the shaft from damage due to this sudden stop. Product Parameters
