Special 2 Post Vehicle Garage Equipment / Car Lift Parking Cost

Product Description

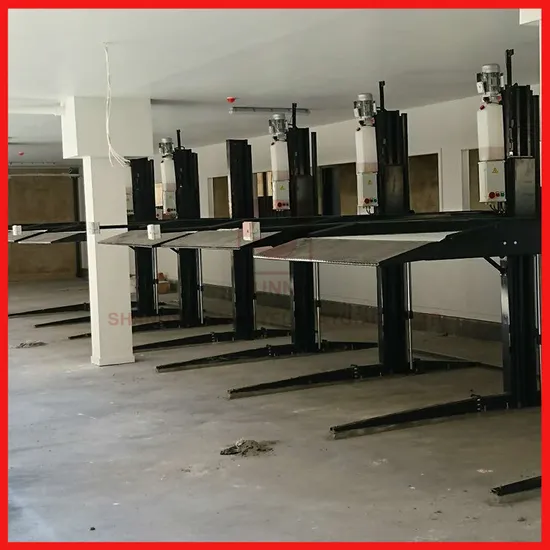

Special 2 Post Vehicle Garage Equipment/Car Lift Parking Cost
Integrated Hydraulic pumping station save space and reduce the leakage of oil.
High quality of bearings offers long service life.
Operation electric box with emergency switch and Dead Man push buttons with Switch Key.
Base frame with U channels to guide sliding blocks 1 rollers during raising up & Lowering down.
Hose burst/ rupture valve located at hydraulic cylinder to prevent back flow of pressurized oil in the system after the valve.
Flexible designed according to customer requirements, suitable for residential & commercial use.
Electric sensors to confirm no persons or objects before rising up/down the platforms.
Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.

Product parameters
Model NO	USS50	USS100
Lifting Capacity	5000KG	10000KG
Lifting Height	1750mm	1750mm
Self Closed Height	750mm	850mm
Vertical Speed	4-6 M/Min
External Dimensiomn	5640x2740x2745mm
Drive Mode	4 ea hydraulic cylinders
Vehicle Size	5600x2700x1650mm
Parking Mode	1 on the ground, 2 underground
Parking Space	2 cars
Rise/Drop Time	70S/60S
Power Supply/Motor Capacity	220V/380V, 50Hz/60Hz,1Ph/3Ph,3.7Kw
