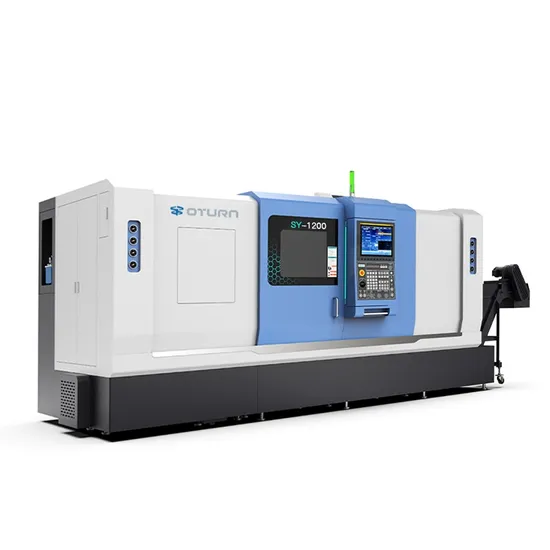

High Precision CNC Turning Lathes for Metalworking Manufacturer Sy1200

Product Description

Product Description
1.Adopt direct drive synchronous electric spindle device: magnetic ring incremental encoder (sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds. 1.Effectively eliminate spindle vibration, and the nose deflection accuracy is within 0.002MM. Improve the surface finish of the workpiece, 2.adopt a rear-mounted rotor, which makes installation and maintenance faster, 3.the spindle motor is equipped with a cooling system to suppress the influence of thermal displacement and ensure a constant operating temperature of the spindle. The spindle system has undergone strict dynamic balance testing. The good accuracy retention, high rigidity and high efficiency enable the whole machine to not only complete finishing, but also perform rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high smoothness. product.
2. World-class high-rigidity overall design servo turret. Equipped with a high-precision clutch to ensure its positioning accuracy and repeatable positioning accuracy. It is equipped with a servo motor to drive the cutterhead to rotate for bi-directional or arbitrary tool selection. The hydraulic principle is used to loosen and clamp the clutch, and the proximity switch feedbacks the clutch action signal to quickly and accurately achieve the tool change action.
3. The machine tool is equipped with THK linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to prevent thermal changes. The bit quantity will be reduced to the minimum, greatly improving the processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life.
4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
5. Programmable hydraulic tailstock and high-rigidity structure of the integral tailstock can eliminate vibration and improve stability. It can be controlled by programmable or manual buttons, and the sleeve telescopicity is realized by hydraulic cylinder, which is convenient, fast and reliable.
6. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various types of equipment can be designed and installed according to the special requirements of the user. Special fixture. Product Parameters

	Name	Unit	SY1200
Travel	Maximum upward rotation of bed surface	mm	Φ700
	Maximum processing diameter	mm	Φ640
	Maximum processing diameter on tool holder	mm	Φ350
	Maximum processing length	mm	1050
Spindle Hydro cylinder chuck	Spindle nose	type	A2-11
	Spindle maximum speed	rpm	2500
	Cylinder/Chuck	lnch	12″
	Spindle bore diameter	mm	Φ117
	Bar diameter	mm	Φ102
	Spindle motor power	kw	26
	Spindle motor torque (1:2)	Nm	296-706
X/Z axis feed	X/Z axis limit travel	mm	330/1140
	X/Z axis rail specifications	spes	45
	X/Z axis screw specifications	mm	4012
	X/Z axis motor power	kw	2.9
	Positioning accuracy	mm	±0.005
	Repeatability	mm	±0.003
	X/Z axis rapid movement	m/min	24/24
Servo Turret	Tool station	pcs	12T
	Outside diameter tool holder specifications	mm	25X25
	Inner diameter tool holder specifications	mm	Ф50
	Adjacent tool change time	sec	0.2
	positioning accuracy	/	±2"
	Repeatability	/	±1"
Tail stock	Hydraulic tailstock	/	Hydraulic tail seat
	Maximum travel of tailstock	mm	900
	Tailstock sleeve tapered hole	type	Mos 5#
	Tailstock sleeve diameter	mm	Ф100
	Sleeve stroke	mm	100
Mechanical Size	Overall dimensions (length x width x height) approx.	mm	3900*2100*2000
	Weight (approximately)	kg	7300
Other	Cutting fluid tank volume	L	250
	Cooling water pump power	W	750
	Hydraulic unit box volume	L	40
	Hydraulic oil pump motor power	kw	1.5
	Lubricating oil tank volume	L	2
	Automatic lubrication pump motor power	W	50

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines?
A: Please tell me your specifications, and we will help you select the best model, or you can choose the exact model yourself. Alternatively, you can send us the product drawings, and we will recommend the most suitable machines for your needs.
Q2: What are the main products of your company?
A: We specialize in all kinds of machines, such as CNC Lathe Machine , CNC Milling Machine, CNC Turning Machine, Vertical Machining Center, Horizontal Machining Center, Lathe Machines, Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
A: We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly welcome to visit us.
Q4. How do you transport it?
A: Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What are the Payment Terms?
A: T/T, 30% initial payment when ordering, 70% balance payment before shipment
Q6:What's the OMQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1. We strongly suggest you tell us the size, and material of your workpiece for our evaluation, if possible, better to send us a workpiece drawing so that we can recommend you the most suitable model.
2. If need a CIF Price, please kindly tell us the port of destination.

---
