High Speed and Accuracy Factory Direct Supply 400mm 50-3500r/Minslant Bed CNC Lathe Machine

Product Description

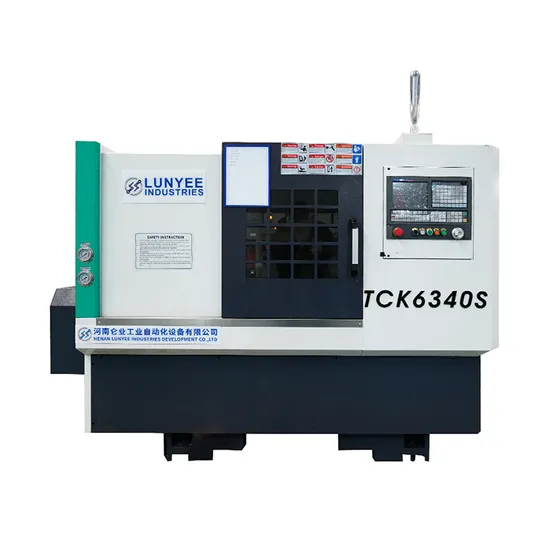

High Speed and Accuracy Factory Direct Supply Slant Bed CNC Lathe Machine
Product Parameters

Specifications	Unit	TCK6340S
Max.swing dia. over bed	mm	400
Max.swing dia. over slide	mm	140
Max.processing length	mm	390 (cutter row) /300 (cutter tower 8 stations)
Max. bar capacity	mm	39/44
Max, processing diameter (plate)	mm	400 (cutter bank) /380 (cutter tower 8 stations)
Spindle nose	GB59001	A2-5
spindle bore	Ф/mm	49/56
Spindle speed	r/min	50-3500
Spindle shift mode		Stepless Speed
Spindle motor power	KW	5.5
Chuck type		Hydraulic chuck/chuck
Chuck size	Inch	6/8
X axis rapid traverse	m/min	12
Z axis rapid traverse	m/min	12
X axis servo motor torque	N.m	6
Z axis servo motor torque	N.m	6
X axis travel	mm	400
Z axis travel	mm	400
Guide way type		linear
Tool post type		Knife bank (optional tower)
Tool shank size	mm	20x20/Ф25
Total rated power	KW	12
Total rated current	A	26
Net weight	kg	2600
Machine dimension(LxWxH)	(mm)	2390x1530x1780

Applications

Company Profile
Lunyee is committed to developing high-performance, high-quality products. In recent years, Lunyee has significantly increased equipment upgrades, technological innovation, and investment in raw materials while maintaining its current production level. Currently, Lunyee has obtained over a hundred certificates and patent approvals, including ISO9000 and ISO9001 certification, as well as CE certification.
FAQ
Q: Are you trading company or manufacturer?
A: We are the manufacturer for 15 years in China.
Q:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production→cargo ready → balance/delivery → further cooperation.
Q: Did you test all the goods before they were shipped?
A: Yes, we test every product before delivery, the quality can be fully guaranteed.
Q:Do you accept product customization?
A:Yes, we will try our best to meet your requirements.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Q: Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
If you have another question, please feel free to contact us.

---
