Product Details
Product Description
Product Description
Features:

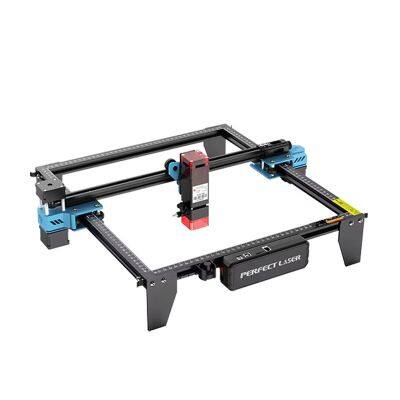

1. Perfect Laser intelligent portable small desktop laser cutter engraver its whole machine adopts modular design and weighs only 4.3kg. It’s easy to install and occupies a small area, which is convenient for placement and transportation. It can be placed on the table for operation.
2. Compression laser technology utilizes FAC lens - collimating light function, the minimum light spot value can be reached up 0.08mm, with a longer effective energy range, higher energy density, stronger cutting ability, can guarantee higher engraving speed and higher engraving accuracy at the same time.
3. Y-axis two stepper motors run simultaneously, which can accurately position the desktop laser engraving machine and make the carving lines more smooth.
4. Support computer online and wireless network control engraving, Support TF card engraving, Support mobile phone app. Multiple engraving connections to improve user engraving experience and engraving efficiency.
5. The light and handy protective cover adopts modular magnetic suction design, easy to disassemble, installation is very simple.
6. The filter adopts the funnel-shaped design of fluid physics, which can effectively prevent the smoke from spreading upward and prevent the smoke from damaging the laser.
7. Low noise, no consumables, minimal pollution to the environment.The desktop laser engraving machine is a high quality environmental protection engraving machine.
8. Stable frame and axis controls ensure precise detail during engraving. The engraved picture is clear and beautiful.
Technical Data:
Product Name
| 10W Intelligent Automatic Portable Desktop Small Laser Cutter Engraver
|
Model
| PEDK-10
|
Laser Power
| 10W
|
Laser Wavelength
| 445±5nm
|
Engraving Area
| 300 × 300mm
|
Engraving Accuracy
| 1mm
|
Spot Size
| 0.08×0.08mm
|
Main Control Board
| EPS 32-bit motherboard
|
Engraving Method
| Computer/ Mobile APP
|
Data Transmission
| USB / WiFi Connection
|
Document Format
| NC/DXF/BMP/JPG/PNG/G code
|
Engraving Mode
| image engraving, text engraving,
contour engraving, pixel engraving
|
Operating Software
| Laser GRBL, LightBurn
|
Software Support Languages
| Chinese, English, Italian, French, Russian
|
APP support Languages
| Chinese, English
|
Support Systems
| Windows XP/Win7/Win8/Win10/
Win11 and Mac System(LightBurn)
|
Packing weight
| 3.7KG
|
Package size
| 513mm*183mm*180mm
|
>>
