Floating Aquarium Fish Feed Pellet Poultry Feed Manufacturing Equipment Feed Processing Machinery

Product Description

Samples

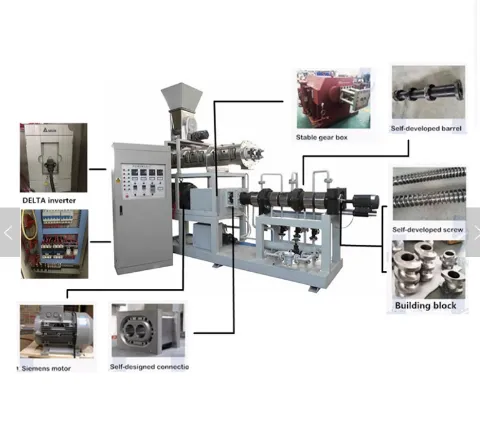

Big output floating and sinking fish feed food pellet extruder
1. Production Description Factory supply floating fish feed pellet mill making machine animal food making equipment processing line is deliberately made for special feed, which needs high in-shape rate and good-looking appearance. fish feed production process is mainly used for sinking/floating/slow sinking fish feed. Effectively protect the aquaculture water body from pollution to improve the quality of life.
2. Technical Parameter

Model	Installed Power(kw)	Power Consumption(kw)	Capacity(kg/h)	Dimension(m)
65 processing line	74	52	120-180	17*1.2*2.2
70 processing line	95	70	200-300	20*1.5*2.2
75 processing line	110	82	250-400	26*1.5*2.2
85 processing line	139	104	400-800	28*3.5*4.3
90 processing line	132	75	800-1200	28*3.5*4.3
95 processing line	165	90	1500-2000	35*3.5*4.3
120 processing line	469	380	2000-2500	45*20*22
135 processing line	712	570	3000-3500	50*20*25

3. Raw materials Fish meal, corn flour, rice flour, soya flour, bone meal, meat, animal oil etc.
4. Different shapes are made by adjusting the dies from extruder 1.0mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,4.5mm...10.0mm depend on fish food dies size
5.Voltage in China
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries. 6. Flow chart
Mixer--- Air conveyor--- Twin-screw extruder ---Hoister --- Dryer ---Flavoring line---Cooler
Our engineer could design the layout drawing according to your dimension of the factory for the fish feed machines.
8. Why choose us
9. Packing and delivery
10. Our Company

---
