Basic Info.
Certification
DOT, E-MARK, CE, ISO, FCC, RoHS, MUTCD, ASTM, AS/NZS, CCC, GS
Working Principle
Electromagnetic
Alarm Volume (within 1m)
RF Signal
Receive Frequency
433MHz / 868MHz / 315MHz Optional
Installation Way
Wall Mounted
Detecting Angle
90 Degree
Bracket
Rotatable in 360 Degree
Assembling 86 Case Easy Mounting Bracket
Yes
Auto-Temperature Compensation
Yes
Speed of Detection
0.3-1.5m/S
Transport Package
Color Box
Specification
Suitable to use all over the world
Production Capacity
500 000 PCS/Month
Product Description

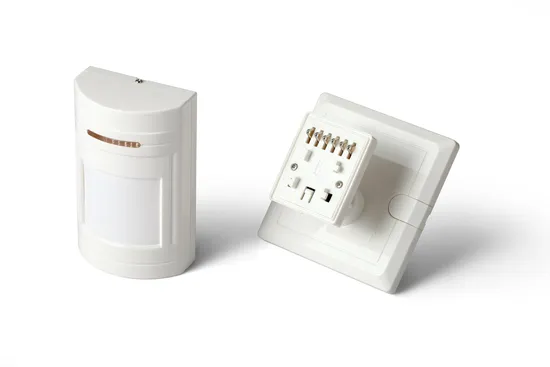

Wide Angle Wired PIR Motion Detector with rotable bracket (ES-926)
Dual PIR Detector with Rotatable Bracket
Main Features:
Using microprocessor
Intelligent temperature compensation
Optional automatic pulse counting(1 or 2)
Optional LED indicator light
The design of customized spherical lens
Defense area, all-around detection intrusion
The modern fashion aesthetic design
Anti-damaged design
Assembling 86 case easy mounting bracket
Insect-resistant design
Anti-visible light technology for its own height
Automatic production, 100% inspection
Adaptive artificial intelligence technology can effectively identify the interference and invasion
The design of dynamic temperature threshold can effectively prevent interference
Technical Parameters
| model | ES-926 |
| Detecting Method | Passive infrared detection |
| Coverage | 12m, Height:about 8m |
| working current | <25mA(12Vdc) |
| LED Indicator light | Power-on preheating and self test and flash 60s, Optional alarm light |
| Angle | 90 degree |
| Speed of detection | 0.3-1.5m/s |
| Sensor | Dual noise-free pyroelectric infrared transducers |
| Alarm Output | normally closed, 28VDC,0.3A(when normally opened, it can be chosen) |
| Alarm Cycle | 2 + 0.5s |
| Anti-tamper Switch | normally closed, when the shell is moved, open it |
| Installation method | wall hanging |
| Operating Temperature | -10 ~ 50 degree C |
| Operating Humidity | <95% |
| The interference of PF | 10V/m below no misinformation |
| Working Voltage | 12Vdc (range:9-16V) |
| | |
Bracket
Other models in same Series optional
ES-465
ES-912
>>
