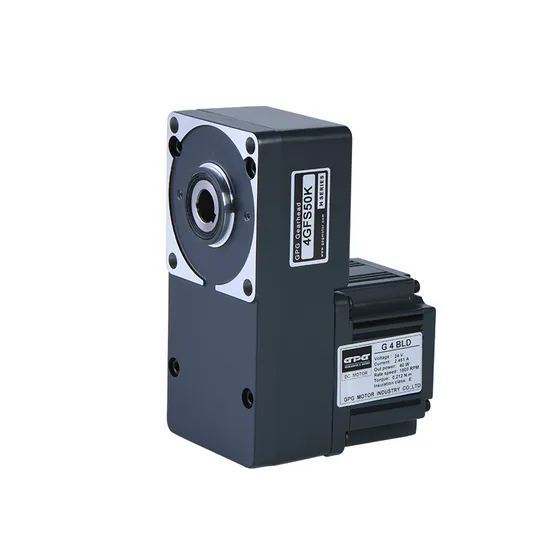

L Type Hollow Shaft DC Brushless Gear Reduction Barrier Gate Motor

Product Description

TaiBang Motor Industry Group Co., Ltd.
The main products is induction motor, reversible motor, DC brush gear motor, DC brushless gear motor, CH/CV big gear motors, Planetary gear motor ,Worm gear motor etc, which used widely in various fields of manufacturing pipelining, transportation, food, medicine, printing, fabric, packing, office, apparatus, entertainment etc, and is the preferred and matched product for automatic machine.
Brushless DC motor is made up of motor and driver,which is a kind of typical product of mechanical and electrical integration.
It is highly regarded by market as its small volume,low noise,high efficiency,wide range of speed control and steady working state with less inaccuracy.The product is widely used in transmission equipment,textile machinery and medical devices,etc.
Motor Model Instruction
G2BLD15-24GN-18S

G	2	BLD	15	24	GN	18S
Factory Code	Frame Size	Motor Type	Output Power	Power Voltage	Motor Shaft Type	Motor Speed
GPG	Motor Mounting Flange: 60mm,70mm,80mm, 90mm,100mm,ø45,ø60	BLD:Brushless Motor With Square Gearhead BLDP:Brushless Motor With Planetary Gearhead	10:10W 15:15W 25:25W 40:40W 60:60W 90:90W 200:200W 400:400W	24:DC24V 36:DC36V 48:DC48V 110:DC110V 220:DC220V	GN:General Bevel Gear GU:Reinforced Bevel Gear A1:Milling Keyway A:Flat type	15S:1500RPM 18S:1800RPM 25S:2500RPM 30S:3000RPM

Motor Performance Parameter

Model	Voltage	Rated Power	No-load Parameter		Load Parameter			Motor Life (Hours)	Motor Weight(kg)
			Rotation Speed	Current(A)	Rotation Speed	Torque(N.m)	Current(A)
G2BLD15-24A(GN)	24V	15W	2200RPM	Max 0.3	1800RPM	0.05	1.1	>5000	0.45
G2BLD15-36A(GN)	36V		2100RPM	Max 0.2	1800RPM	0.05	0.7
G2BLD15-48A(GN)	48V		2100RPM	Max 0.1	1800RPM	0.05	0.5
G2BLD25-24A(GN)	24V	25W	3300RPM	Max 0.4	3000RPM	0.08	1.3		0.65
G2BLD25-36A(GN)	36V		3200RPM	Max 0.3	3000RPM	0.08	0.9
G2BLD25-48A(GN)	48V		3200RPM	Max 0.2	3000RPM	0.08	0.7

Gearhead Model Instruction
2GN-100K

2	GN	100	K
Dimension	Gear Type	Reduction Ratio	Bearing type
2:60mm 3:70mm 4:80mm 5:90mm 6:104mm	GN:General Bevel Gear GU:Reinforced Bevel Gear	1:100	Ball Bearinig

External Dimension

Motor Type	Gearhead Type	Gear Ratio	L Dimension
G2BLD15-24GN G2BLD15-36GN G2BLD15-48GN	2GN( )K	1:3~1:20	32mm
		1:25~1:180	40mm

Should you have any questions,please feel free to contact Ms Susan Liu directly.
Let's talk in detail.
FAQ
Q: How about your company?
A:We are gear motor factory located in Wenzhou city of China.We start from 1995.We have more than 1200 workers.Main products is AC micro gear motor 6W to 250W, AC small gear motor 100W to 3700W,brush DC motor 10W to 400W,brushless motor 10W to 750W,drum motor 60W to 3700W,planetary gearbox ,worm gearbox etc . Q: How to choose a suitable motor?
A:If you have gear motor pictures or drawings to show us, or you tell us detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc.Please do not hesitate to let us know, then we can suggest suitable motor per your request . Q: Can you make the gear motor with customize specifications ?
Yes, we can customize per your request for the voltage, speed, torque and shaft size and shape. If you need additional wires or cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: What's your lead time?
A: Usually our regular standard product will need 10-15days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders. Q: What is your MOQ?
A: If delivery by sea ,the minimum order is 100 pieces, if deliver by express, there is no limit. Q: Do you have the item in stock?
A: I am sorry we do not have the item in stock, All products are made with orders. Q: How to contact us ?
A: You can send us enquiry .

---
