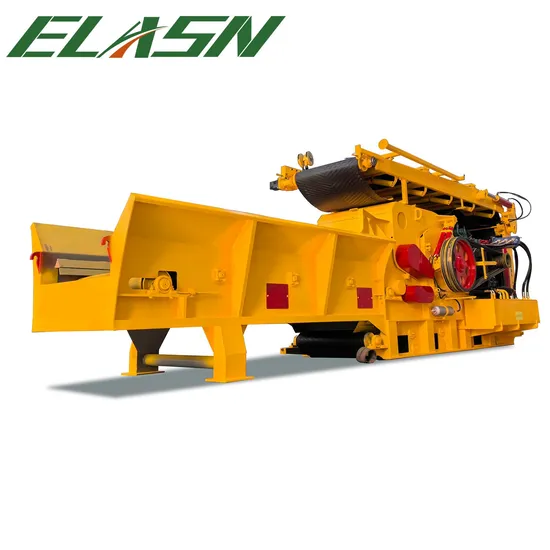

Large Wood Processing Comprehensive Wood Chipper Machine

Product Description

Product Description

The comprehensive crusher is an essential machine for most woodworking production lines,It is a special equipment for fuel storage of biomass power plants.
The raw materials for crushing are various types of trees, small diameter wood, wood harvesting residues (such as branches, branches, etc.) and wood processing residues (such as boards, slats, log cores, waste veneer, etc.), and urban construction waste (such as building templates, waste pallets), etc., can also crush non-wood materials (such as hemp stalks, reeds, bamboo, corn stalks, cotton firewood, etc.).
Specification

Model	ELASN1250-500	ELASN1400-500	ELASN1600-500
Rotor dia.(mm)	800	800	800
Feed roller method	Forced feed roller	Forced feed roller	Forced feed roller
Cutting mechanism	20 hammers	24 hammers	24-28 hammers
Screen size mm)	80-100	80-100	80-100
Feeding inlet size(mm)	1250-500	1400-500	1600-500
Knife roll speed	540	800	800
Production (t/h)	10-15	15-20	18-30
Motor power (kw)	132-160	185-200	200-220
Feed mode	5m chain plate feeding	5m chain plate feeding	5m chain plate feeding
Discharge	10m belt conveyor	10m belt conveyor	10m belt conveyor
Size (m)	8.3*2.3*2.9	8.6*2.5*2.9	9.2*2.8*3.1

Features of comprehensive wood chipper machine
1,Large diameter of rotor, rotor is equipped with grinding knives or hammer for crushing different kinds of raw material, the blades and hammers are replaceable. 2,Cover of crushing chamber could be opened by hydraulic, ease for maintenance and changing blades. 3,The size of screen mesh is customized to different size according to clients' requirements. 4,Forced hydraulic feeding system technique ensures continuously feeding and large working capacity. 5, High Capacity with larger feeding inlet than traditional type, which could process big diameter of logs in arrange of 300-400mm.
Detailed images
Delivery of the machine
Company profile
Zhengzhou ELASN Machinery Equipment Co., Ltd. is located in Zhengzhou, central area of China, a traditional industry city with rich culture and history .Away from xinzheng international airport only half an hours,also have high speed train to every main city of China.
Our factory established in 1991, Focus on woodworking machinery,Here we can provide a complete solution for your requirement.
Our main products are compressed moulded wood pallet making machine,wood sawdust block making machine for pallet foot,wood pallet automatic nailing machine,woodworking saw,wood crusher,wood shaving machine,wood chipper,wood dryer,veneer debarker peeling machine,wood charcoal making machine and so on.

---
