Product Description
Product Description

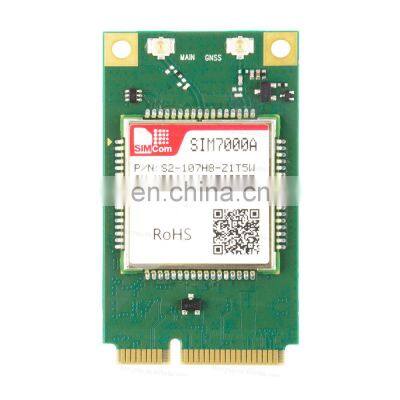

Description• The SIM7000A is Multi-Band LTE-FDD module solution in a SMT type which supports LTE CAT-M1(eMTC) and NB-IoT up to 375kbps data transfer.• It has strong extension capability with rich interfaces including UART, USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's application. • The package of SIM7000A is compatible with SIM900 and SIM800F. AT commands of SIM7000A are mostly compatible with SIM800F. This also maximizes the investments of customers, and enables a short time-to-market.• It is designed for applications that need low latency, medium throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, telematics, asset tracking, remote monitoring , E-health, mobile pos terminals and sharing bike.General features • Quad-Band FDD-LTE B2/B4/B12/B13• Control Via AT Commands• Supply voltage range: 3.0V~ 4.3V, Typ: 3.8V• Operation temperature: -40℃ to +85℃• Dimensions: 24 X 24 X 2.6mm• Weight: 3.0g• GNSS (GPS,GLONASS and BeiDou/Compass, Galileo, QZSS)Specifications for Data transfer• LTE CAT-M1(eMTC) - Uplink up to 375kbps, Downlink up to 300kbps• NB-IoT - Uplink up to 66kbps, Downlink up to 34kbps Specifications for SMS• Point to point MO and MT• Text and PDU modeConsumption• Power off: 7uA• PSM: 9uA• Sleep: 1mA• Idle: 11mAOther features• USB Driver for Microsoft Windows XP/Vista/7/8• USB Driver for Windows CE/Mobile• USB Driver for Linux/Android• Firmware update via USB• TCP/IP• PPP• SMS• EMAIL• FTP/HTTP/SSL• VoLTE* • FOTA* Interfaces• USB2.0 x1 (high-speed)• UART x2 (7-wire UART and 2-wire UART interface multiplex from GPIO)• SIM card x1 (1.8V and 3V)• I2C x1• GPIO x5• ADC x1Certifications• RoHS / REACH /FCC/Verizon/AT&T/ PTCRBWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
