China Dried Spices Red Chilli Pin Mill Pulverizer Customized Matcha Tea Leaf Powder Pulverizing Milling Grinding Crusher Machine

Product Description

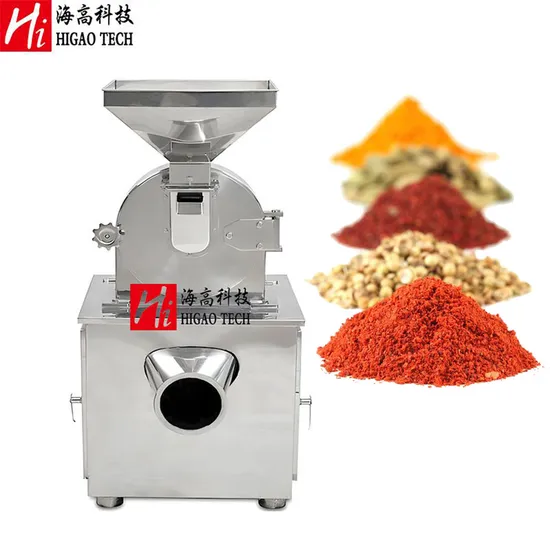

Product Description Pin Mill Pulverizer Machine is used to pulverize granules or particles with moderate hardness, less viscosity, less fiber into fine powder.Pin Mill Pulverizer Machine has becomes the universal equipment especially used in sugar, salt, beans, dehydrated fruits and vegetables pulverizing and some spice and seasonings production.
Product Parameters

PMA Series Pin Mill Pulverizer of HIGAO TECH
Model	Capacity	Inlet size	Output size	Motor/speed	Dimension(L×W×H)	Weight
PMA-15	10~50kg/h	«6mm	20~120mesh	2.2kw/6000rpm	550×400×850mm	100kg
PMA-20	60~150kg/h	«6mm	20~120mesh	4kw/4500rpm	550×600×1250mm	200kg
PMA-30	100~300kg/h	«6mm	20~120mesh	5.5kw/3800rpm	600×700×1450mm	300kg
PMA-40	300~1000kg/h	«10mm	20~120mesh	11kw/3400rpm	800×900×1550mm	500kg
PMA-60	500~2000kg/h	«12mm	20~120mesh	18.5kw/2800rpm	900×900×1850mm	700kg
PMA-80	800~3000kg/h	«12mm	20~120mesh	37kw/2000rpm	1100×950×1900mm	1000kg

Working principle: The material is crushed by impact and friction of the teeth or pin between movable and fixed disks under the relative motion. Use a cloth bag to collect the final product at the discharging port. Detailed Photos
Features:
Wholly made of stainless steel.
Designed according to GMP standard.
Crushing chamber can be equipped with water cooling jacket.
Output size can be adjustable by changing different size of sieves.
Can be equipped with a dust collecting device to remove the dust.
Can be equipped with a cyclone separating device for a continuous production. Related Products

Company Profile What we provide:
Higao Tech Provide professional grinding pulverizer machines, powder mixing machines, vibrating screening machines, granulating machines, drying equipment, conveying equipment, puffed snack food production line, food snacks processing equipment, scrap rubber tire recycle equipment, waste tire recycling rubber powder production plant, rubber crumb recycling equipment, nutritional breakfast producing line, various customized turnkey systems, powder engineering turnkey system projects used in food, pharmaceutical, chemical, tire recycle, plastic, mineral, ceramic industries, etc.
Packaging & Shipping
FAQ 1. How can I know your quality?
Our company is famuous in our industry. We have more than 20 years history. The best way to know the quality is comparison. You can come to our factory for on-the-spot investigation. You are welcome.
2. Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.
3. What is your delivery time if I place order?
Usually 30~60 days. It depends on the machine itself, our actual order status.
4. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.
5. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.
6. What should I do if we can not solve the problems some times?
You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.
7. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
