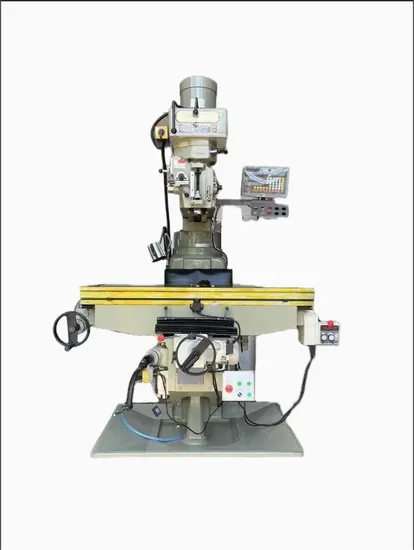

Advanced Vertical Milling Machine with Integrated Lifting Table, CNC Machine, Milling

Product Description

Unveil the extraordinary capabilities of the 4s Vertical Lifting Table Milling Machine, a top-tier metal milling marvel engineered in Taiwan. This cutting-edge masterpiece is meticulously crafted to offer unrivaled precision and efficiency, setting new standards in metalworking excellence.
Product Description
Mechanical CharacteristicConstructed with premium Meehanna cast iron, this machine exhibits exceptional rigidity and remarkable stability, safeguarding against deformation over time. It's a powerhouse of durability and reliability, ensuring consistent, high-performance operations.The spindle is empowered with an advanced precision bearing combination, delivering incredible cutting force and superior accuracy. This results in unparalleled machining capabilities that elevate your production processes.Equipped with an innovative inverted hanging design, the end milling head provides exceptional precision, effortless operation, and convenient braking. Customized solutions are available for customers desiring bespoke features tailored to specific needs.The three-axis screw nuts are crafted from high-grade phosphorus meter copper, providing outstanding wear resistance and a significantly prolonged lifespan, ensuring long-lasting performance.The XY shaft slide undergoes a sophisticated high-frequency annealing treatment, which enhances its wear resistance, thus dramatically extending the machine's operational life.A seamless and robust lubrication system is integrated to ensure optimal machine performance through smooth and uninterrupted sliding.
Product Parameters
1.Milling Machine Rotation Speed
Rotation speed is pivotal as it directly impacts processing efficiency and cutting force. Enhanced rotation amplifies cutting power, refines surface finish quality, and reduces residual stress on components, optimizing overall performance.
Milling Machine Cutting Speed Cutting speed plays a crucial role in determining the processing speed and quality. The optimal speed is contingent on the material's hardness, cutter material, and machine type, ensuring superior results with every operation. Milling Machine Processing Accuracy Processing accuracy is a critical performance indicator that affects both machining and part quality. It is influenced by the cutting force, machine and tool rigidity, workpiece clamping precision, and any initial machine tool discrepancies. Milling Machine Precision Stability Precision stability guarantees consistent machine accuracy throughout its operation. It is affected by initial tool errors, machine deformation, and tool wear, making it essential for maintaining superior quality production.

Product Name
Product Name	Milling machine
Product model	4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	720MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	320MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-490MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.

---
