2020 Precision Carbide Tools Sharpener for Alloy Saw Blade

US$999.00-14,000.00 1 unit (MOQ)

Basic Info.

Model NO.
NF 700
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Plunge Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Saw Blade Dia
110~710mm
Sawblade Thickness
0.5~8mm
Side Angle
5°~ -5°
Side Relief
5°~ -5°
Hook Angle
-5°~28°
Bore Diameter
12~120mm
Wheel Diameter
80*125*32mm
Wheel Speed
5000r/Min
Grinding Speed
4~20mm/S
Power
4.5kw
Weight
1900kg
Transport Package
PE Bag + Wood Carton
Specification
1900 *1590 *1920mm
Trademark
TORSEL
Origin
China
HS Code
8460310000
Production Capacity
5000units/Year

Product Description

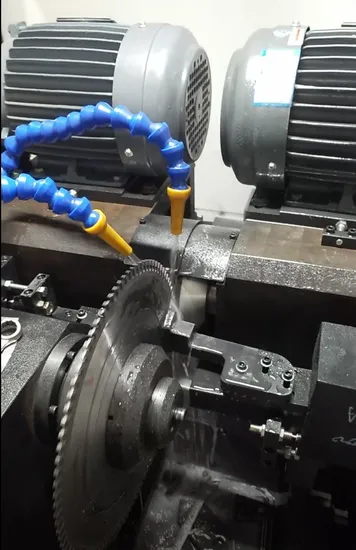

NS 700 CNC Side of Saw Blade Grinding Machine High-level productivity & precision grinding machine for carbide tools.

Advantages of Saw Blade Side Grinding Machine • More precision- grinding precision: <0.03mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement
CNC Control- be flexible to control precision as requirement. 3-D Graphics Grinding Machine
Technical Premeter
Saw Blade Diameter 110~710mm
Saw Blade Thickness 0.5~8mm
Side Angle 5°~ -5°
Side Relief 5°~ -5°
Hook Angle -5°~28°
Bore Diameter 12~120mm
Pitch 2~65mm
Tip Length 1~15mm
Tip Width 1~15mm
Wheel Diameter 80*125mm*32mm
Wheel Speed 5000r/min
Grinding Speed 4~20mm/s
Power 4.5KW
Dimensions 1900 *1590 *1920mm
Weight 1900kg

Configuration
Ball Screw IF (Germany)
Adjust LM Guide THK (JAPAN)
Pneumatic Parts SMC
Servo Motor Inovance
PLC Inovance

FAQ 1. How to chooce best saw blade grinding machine? - Best grinding machine process tools with higher precision & long service life. 2. How is the performance of TORSEL saw blade grinding machine? - TORSEL saw blade grinding machine process tool with excellent precision <0.03mm,the service life is upto 7-15 years. 3. Whats your cooperation companys?
