2000ton Injection Molding Machine, Stable Quality, Competitive Cost, Save Energy, High Quality, Reasonable Price, New Machine, 10000 Grams, Big Machine

US$295,700.00-403,000.00 1 Set (MOQ)

Basic Info.

Model NO.
ZX-2000 Injection Molding Machine
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Motor Type
Servo Motor
Injection Weight
8548-11380g (PS)
Space Between Tie-Bars
1610mm X 1460 mm
Product 1
Household Production, Example Crate/Fork/Toy/Cover
Product 2
Industrial Production, Example, Pipe-Fitting
Product 3
Other Production, Example Medical/Agricultural
Feature
Stable Quality, Competitive Cost, Careful Service
Transport Package
Plastic Film Cover, Wood Pad, Wrapped Film
Specification
16mx 3.8mx 3.5m
Trademark
OEM
Origin
China
HS Code
8477101090
Production Capacity
5PCS/Month

Product Description

2000ton Plastic Injection Molding Machine (Model: ZX-2000)

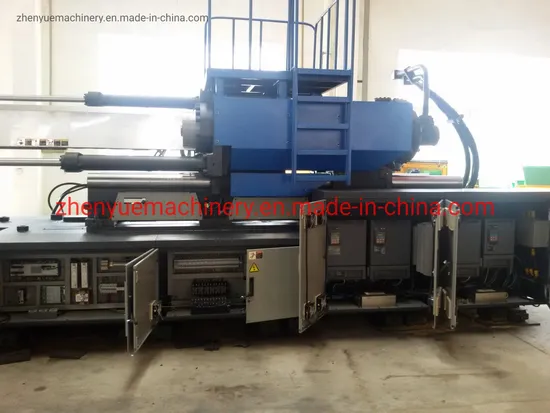

1,Photo of Plastic Injection Molding Machine


2, Technical Parameter of Plastic Injection Molding Machine
ZX-2000 Injection Unit Date A B C
Screw diameter mm 130 140 150
Screw L/D ratio / 23.7 22 20.5
Theoretical shot volume cm3 9291 10776 12370
Shot weight(PS) g 8548 9914 11380
Injection rate g/s 1194 1385 1590
Max.screw speed rpm 90
Clamping Unit
Clamping force KN 20000
Toggle stroke mm 1550
Space bettween tie bars mm 1610x1460
Min.mold thickness mm 700
Max.mold thickness mm 1600
Hydraulic ejection stroke mm 405
Hydraulic ejection force KN 352
Others
Hydraulic system pressure Mpa 16
Pump motor kw 35+35+35+35
Heating capacity kw 80
Oil tank capacity L 2800
Machine dimensions m 16x3.8x3.5
Machine weight Ton 115


3, Platen Dimension of Plastic Injection Molding Machine
4, Dimension of of Plastic Injection Molding Machine (ZX-2000)
5, Technical Characteristics
of Plastic Injection Molding Machine
CLAMPING SYSTEM

-FEA designed double-toggle five-joint clamping machinery
-High rigidity platen with enlarged space between tie-bar
-Movable platen supported by the adjustable slide system which improves platen parallelism and life time of tie-bar and mould
-Optimized lubrication system ensuring precision clamping and extending the life time of the clamping

INJECTION SYSTEM

-Double guide bracket structure, multipoint fixed ensure injection smoothly and accurately
-High speed and high pressure adopt special injection design, improving injection speed
-Injection cylinder, premold oil motor and plastic screw are in the same centreline, to enhance the injection pressure and injection speed, to achieve high precision, fast injection molding
HYDRAULIC SYSTEM

-Adopt the imported pump, low noise, long lifetime, stable performance
-High performance hydraulic valve, less failure, fast switch, convenient maintenance
-Low pressure mould protect system, which is more suitable for the precision mould
-Lubrication oil in dependent lubrication system can lubricate everywhere in the best situation

6, Manufacturer of Plastic Injection Molding Machine
7, Contact Information
Contact Person: Mr. Tony
Mobile : +86 13656841356
Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012
Production: Plastic Injection Molding Machine
Remark:
1, the company reserves the right to revise all information (including word, photo) above.
2, due to technology development, the machine design or specification would be changed without any prior notice.
3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.
