Finisar Compatible 40g 4lanes CWDM4 Qsfp+ Module 1270 1330nm 20km Duplex Fiber Duplex/LC Qsfp 40g CWDM4 Optical Transceiver

Product Description

Product Highlights* Compatibility -- for Arista, Brocade, Fortinet, H3C, Juniper, Mellanox, Mikrotik, and other Open Switches.
* MVSLINK QSFP+ transceiver module, 40Gb/s; 4 CWDM lanes: 1271nm, 1291nm, 1311nm, 1331nm.
* Easy to use -- 40G-PSM4 transceiver with Advanced DDM Function to monitor real-time parameter and state on fiber links; It supports hot-pluggable, plug and play; SFF-8436 QSFP+ MSA Compliant and Compliant with 40G Ethernet IEEE.
* Low Power Consumption -- 40Gb QSFP transceiver designed for energy efficiency, less than 3.5W Power Consumption; Low EMI and advanced ESD protection.
* High Quality -- All of products are manufactured under strict quality control system, every module has been tested one by one on different switches before shipping, to ensure compatibility with different brand of switch.
* After-sales Service -- 30 days Free-Returned, 3 years Free Warranty and lifetime technology support, please contact us, any product quality and compatibility issues.
Product Description Finisar Compatible 40g 4lanes CWDM4 Qsfp+ 1270 1330nm 20km Duplex Fiber Duplex/LC Qsfp 40g CWDM4 Optical Transceiver Module

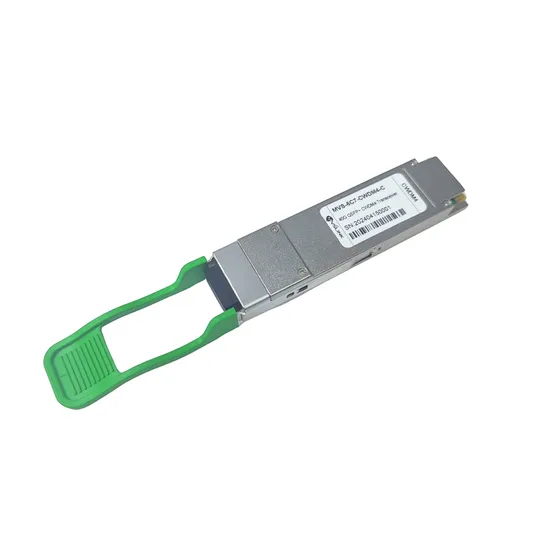

The QSFP+ 40G-CWDM4 module is a highly integrated 4x10G transceiver focused on reach, bandwidth, density and cost for high port-count 40G systems, and client-side 40G interfaces. It is compliant with the QSFP+ MSA. It is interoperable with LR4 transceivers over a 10 km reach.
MVSLINK 40G QSFP+ CWDM4 transceiver comes with an Industry Leading Lifetime Warranty, surpassing the OEM warranty for the same product. Every QSFP+ CWDM4 transceiver is environmentally tested in its specific port/platform, which includes compliance verification for distance, wavelength, traffic density and light.
MVSLINK's product solutions provide power-efficient connectivity enabling higher port bandwidth, density, and configurability at a low cost and reduced power requirement in the data centers.
Product Details

Compatible	Cisco, Juniper, Arista, Brocade, Mellanox, HW, Generic, HPE Aruba, Netgear, TP-Link, Linksys, Broadcom, etc.
Module	MVS-6C7-CWDM4-C	Vendor Name	Mvslink
Form Factor	Qsfp+	Max Data Rate	103.125Gbps (4x 25.78Gbps)
Wavelength	1270-1330nm 4lanes, 1310nm	Max Cable Distance	10KM
Connector	Duplex LC	Media	SMF
Transmitter Type	DFB	Receiver Type	PIN
Power Consumption	≤3.5W	Extinction Ratio	>3.5dB
DDM/DOM	Supported	Commercial Temperature Range	0 to 70°C (32 to 158°F)
Protocols	IEEE802.3ba 40GBASE-LR4; SFF-8436 QSFP+ MSA	Warranty	3 Years

Quality AssuranceCompatibility Testing
Our R&D team consists of experts with years of experience in the optical communications industry. Our manufacturers are top-class in the industry and support a product OEM. Installing a third-party transceiver does not affect your network equipment warranty.100% Third Party Compatible
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations. Prior to shipment, we meticulously code our optical modules and DAC/AOC cables, followed by rigorous testing on the corresponding switches to guarantee 100% compatibility with your system.
MVSLINK follows the principle of quality first. We strictly control the quality of our products and comply with certification and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, UKCA, and so on. To get the detailed certification, please contact us. Connectivity Solutions
Product Parameters
Production Workshop
Custom Coding & Manufacturing for Your Optical Modules.Expert optical module makers offering OEM branding & customized coding. Stand out with our reliable, personalized solutions!
Packaging & Shipping
Product Features
* Compliant with 40G Ethernet IEEE
802.3ba 40GBASE CWDM4 standards
* Uncooled 4x10Gb/s CWDM transmitter
* Supports Infiniband SDR, DDR and QDR
* Operating Temperature
Industrial: -40°C to +85°C
Commercial: 0°C to 70°C
Applications
* Data Center Backbone
* Ethernet Switches
* High-speed Servers
* High-performance Computing Clusters
* SAN, Routers, Hubs, Load Balancer
