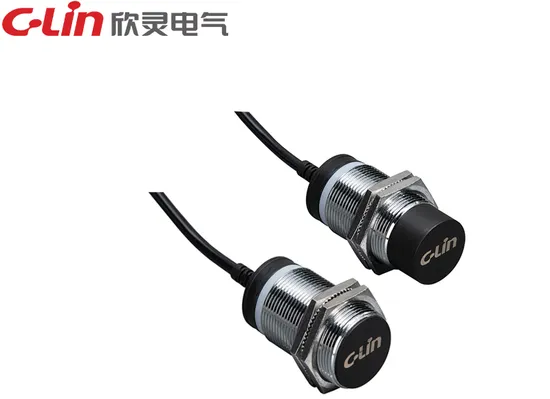

LJA18S-5D1 (D2, A1, A2) Upgraded Inductive Proximity Sensor/ Displacement Sensors

US$4.37-7.29 180 Pieces (MOQ)

Basic Info.

Model NO.
LJA18S-5D1(D2, A1, A2)
Wires
NPN/PNP
Standard
Standard
Application
Corridor
Certification
ISO, CE, CCC
Detection Distance
5mm±10%
Standard Test Objects
18*18*1mm Iron
Sensor Head
Flush-Mounted
Protection Level
IP67
Material
Brass with Chrome Plating
Transport Package
Carton Box
Specification
8mm/12mm/18mm/30mm
Trademark
C-lin
Origin
China
HS Code
8536520
Production Capacity
5000PCS/Month

Product Description

Product Description
Proximity switch is a kind of displacement sensor with switching output, the output has NPN, PNP, normally open, normally closed and relay, etc. It can detect transparent and opaque objects such as metal (e.g. iron, steel, copper), plastic, glass, wood, water, paper, magnet, etc., and it can be connected with PLC, servo controller, frequency converter, counter, and controller to achieve the purpose of automatic input signals, which is widely used in the fields of machinery, textile, light industry, papermaking, printing, packaging and other industries.
Inductive proximity switch detects the object as metal (e.g. iron, steel, copper, etc.); capacitive proximity switch detects the object as any object (e.g. glass, metal, plastic, water, oil, paper, etc.); Hall proximity switch detects the object as magnetic metal (e.g. magnet).
This series of inductive proximity switches implement GB/T14048.10 standard.
Detailed Model
DC Two-wire 10-30V Normal Open LJA18S-5D1
Normal Close LJA18S-5D2
AC Two-wire 24-250V Normal Open LJA18S-5A1
Normal Close LJA18S-5A2
Detection Distance 5mm±10%
Setting distance 0 ~ 4.25mm
Standard detection object 18*18*1mm Iron
Response frequency N type P type: 600Hz, DC:200Hz, AC:25Hz
Working power DC : Rated Voltage DC12~24V (Use Range Voltage DC10~30V);AC: M8:AC90~250V,M12-M30:AC24~250V
Temperature range Operating: -25 to +70°C (no icing or condensation); Storage: -40 to +85°C (no icing or condensation)
Product Features
1. Simple connection, easy to install and apply
2. Multi-protection: polarity protection, over-current protection
3. Dual light indicator: power indicator green, action indicator red.
Our Advantages Brand: 39 Years of Industry Leadership, Professional Manufacturer of Industrial Control Components. Quality: Advanced Technology Applications, Aligned with International Quality Standards. Capacity: Annual Production Capacity in the Tens of Millions, Leading the Industrial Control Component Manufacturing Industry. Customization: Providing Custom Services and Delivering Application Solutions. Logistics: O2O Marketing Model, Professional Logistics Support. After-sales Service: Comprehensive Service System, Resolving Customer Issues Anytime.
