Supplying Automatic Down Feather Quilt Comforter Filling Machine

Product Description

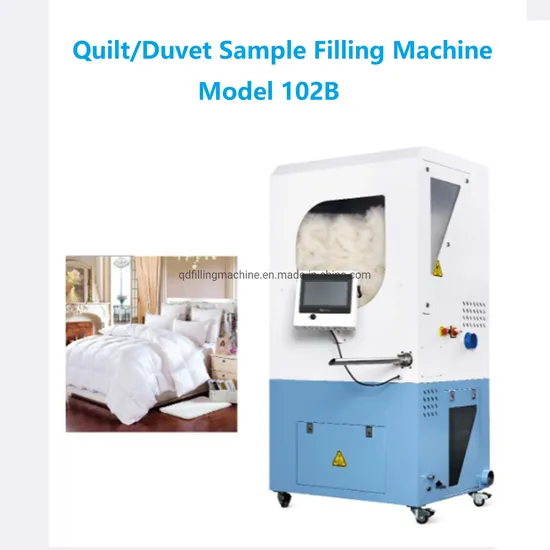

Automatic Down Feather Quilt Comforter Filling Machine

Item No.	102B	Dimension	800*800*2000mm
Weighing Ability	1--40g	Showing Accuracy	0.1g
Voltage	220V	Power	7.5kw
Air Pressure	0.8Mpa	Storage Bin Capacity	5kgs

Description
Specialized for Sample Box/Chamber Duvets/Quilts.
1. Wide measure, the range of weighing can set 1--40 grams.
2 Keep workshop clean, so that prevent the occupational sick and enhances the enterprise apparence, comply with the standard of the Europe and the US clients request.
3. Wide application for different types of down and feather, also could fill Ball Fiber material.
4. Showing accuracy can reach0.1g per filling time.
5. Six weighing scales support double nozzle,dual ports design.
Application It is suitable for small and medium home textile manufactures. Mainly applied in the down quilt filling enterprises which have multi-species but small quantity orders. Using automatic weighing technology instead of original handwork and semi-auto equipment. One person operation to replace the mode of original handwork or semi-auto work;
Produce Process
Import Materials
Using motor to import down and feather to storage box.Filling material:duck down, duck feather,goose down,goose feather,milkweed velvet,ball fiber,fake down and etc.
Set up Target Weight
Set up target weight in programm,filling range isg-g,the max filling weight of home textile filling machine is 80g/filling
Start Prepared
Press the button "automatic",filling machine can be ready state automatically
Step the pedal to fill
Put the fabric piece to the filling port and hold it in right way,then step pedal,the target weight down is filled into the fabric piece.filling in this way,it can fill 1800 grids/hour/port
FAQ
Q: Why do you choose us?
A: There are 30 years of experience. We can produce any type you need.
Q: Which payment period is accepted?
A: 30% prepayment + 70% payment is paid before shipment.Welcome your inspection before shipping.
Q: What is the country we export?
A: India, Bangladesh, Vietnam, Vietnam and the Middle East, etc.
Q: How to visit the factory?
A: At your most convenience.
Welcome to visit us!

---
