Good Reputation Fiber Metal Laser Cut Machine 1325 1500W with CE, ISO, FDA, SGS

Product Description

Fiber laser cutting machine Description
HS CODE: 8456110090
After-sales Service Provided:Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support whole lifetime.
Applicable Material: Metal Industry
Laser Type:Fiber Laser
Laser Source Brand: China Raycus
Laser Head Brand: Switzerland Raytools Bm109
Servo Motor Brand:Japan Yaskawa Servo Motor and Driver
Rack and gear brand:Taiwan Apex
Key Selling Points:Multifunctional, High accuracy, Durability
Optical Lens Brand:Wavelength
Guide rail:Taiwan Hiwin
Cutting Area: 1300*2500 mm
Machine Weight:3.5tons
Max Speed, Max linkage speed(x,y):Max 120m/min
X Y axis max positioning speed : 160m/min
Cutting Thickness: Max 16 MM
Maximum acceleration:1.5G
Repositioning accuracy:±0.02mm
Graphic Format Supported:AI, DXF, PLT, BMP, DST, DWG, LAS, DXP
Applicable Industries:Building Material Shops, Machinery Repair Shops, Retail,
Construction works , Advertising Company
Condition:Brand New
Cooling Mode:Water Cooling
Control Software:Cypcut
Warranty:3 years on machine and laser (except Consumable parts)
Max loading weight: 1400KG
Z Axis running range:100mm

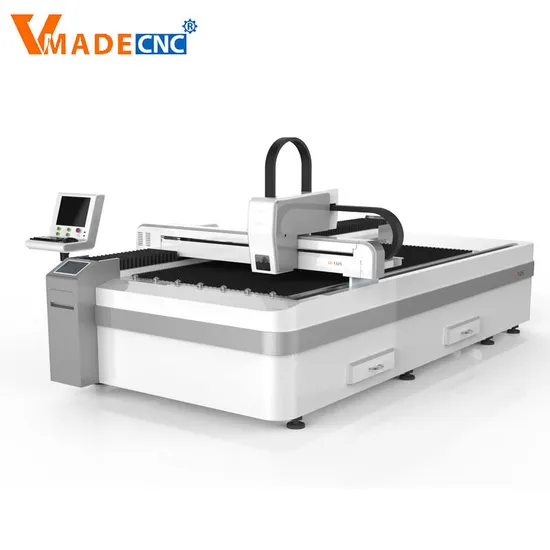

Main Features of Fiber Laser VMADE CNC VLF1325
(1) High photo-voltaic conversion rate (above 30%), which helps to save electricity and costs greatly to
guarantee the highest production efficiency.
(2) When processing, the laser only consumes electricity and doesn't need extra gas(only auxiliary gas ),
bringing the minimum operation and maintenance costs.
(3) Adopting semiconductor modular and redundancy design, without any optical glass in resonant cavity
and without start time, so it is in high stability and doesn't need adjusting and maintaining, which saves the
costs and time. In this point, the traditional laser is not comparable.
(4) The output wavelength of fiber laser is 1.06μm, which is a tenth of CO2 wavelength. The output beam is
in high quality and power density, so it is easy to be absorbed by metal materials and therefore has great
power to cut and weld to make the lowest processing costs.

Raycus Laser source	High electro-optical conversion efficiency Customized output fiber length QBH connector Maintenance-free operation Wide modulation frequency range Small size, easy to install
Raytools head autofocus	The BM109 series are auto-focusing laser cutting heads released by RAYTOOLS AG in 2017 for fiber laser processing with 1.5kW or less. This products have a built-in motor drive unit, which drives the focusing lens through a linear mechanism to change position automatically within 17mm.Customers can set the program to achieve continuous focus that completing the rapid piercing and cutting material with different thickness. BM109 use the D28 diameters lense set to collimate and focus the laser beam, which can achieve the diffraction-limited optical effect. The design of water-cooled structure allows laser heads to work stably and chronically.
Yaskawa servo motor and driver	Real-time auto-gain tuning Manual and auto notch filters Manual and auto damping filters Setup software with motion simulation New structure innovative core high-precision encoder Complies with European safety standards Low interference
Tongfei Industrial Chiller	Using high-pressure electrostatic spray treatment, the appearance is elegant and unique, and durable. The control system adopts liquid crystal Chinese and English conversion computer controller, fully automatic control, simple and intuitive operation. With automatic fault diagnosis function, the fault point is directly displayed on the screen, prompting the user to process quickly.
Taiwan guide rail	Hiwin linear slide rails are four-row single arc-arc contact linear slides, and integrate heavy-duty precision linear slides with optimized structural design to improve load and rigidity compared with other linear slides; It has four-direction load characteristics and automatic self-aligning function, which can absorb the assembly error of the mounting surface and obtain high-precision appeal.
Cypcut visualized interface	Automatic graphics optimization Simple process settings Flexible processing toolbar Rich data statistics Accurate patrol assistance Double deviation self-correction
France Moto Reducer	The company is located in Saint-Etienne, a traditional military production base in Europe. It is created by cooperation between MOTOREDUCER and a well-known French military aerospace equipment manufacturing company through years of technical exchanges, global market analysis and strategic planning Highly demanding, higher standards and more comprehensive transmission equipment manufacturing enterprises. MOTOREDUCER planetary reducer has been promoted in the Chinese market since 2010, and has successfully served thousands of industrial equipment manufacturers in various fields. Now, in order to meet the improvement of the overall level of industrial manufacturing and better adhere to the "use technology to create value for the world" concept, in 2018 will launch a higher performance, more comprehensive RECKON-MOTOREDUCER precision planetary gearbox series products.
Apex Rack and gear	These drives are perfect for a wide range of applications, including axis drives requiring precise positioning & repeatability, traveling gantries & columns, pick & place robots, CNC routers and material handling systems. Heavy load capacities and duty cycles can also be easily handled with these drives. Industries served include Material Handling, Automation, Automotive, Aerospace, Machine Tool and Robotics. The rack product range consists of metric pitches from module 1.0 to 16.0, with linear force capacities of up to 92,000 lb. Rack styles include helical, straight (spur), integrated and round. Rack lengths up to 3.00 meters are available standard, with unlimited travels lengths possible by mounting segments end-to-end. Quality levels available include soft, induction-hardened, quenched & tempered and hardened & ground (up to AGMA 12+ and DIN 4).

Service:
Pre-sale:
(1)regarding your demands , the best suitable machine will be recommend you . the customized machine also support
(2)regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A,FORM-B,FORM-F,original certificate signed by Embassy.etc.
(3)all the machine will be tested before delivery, and we will take the video and pictures to you.when you receive it , it can work directly.
(4)You could visit the factory at any time!
After-sales
(1)we will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2)All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can't solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.
FAQ:
1.How i can choose a suitable machine?
Tell us the max working area,the material and its thickness you want to cut,we can help choose the best suitable machine.
2.Payment terms?
T/T,L/C,Western Union,Paypal,****** Secure Payment ect.
3.How about of your shippng?
With professional packing to avoid the damage, We have posted many products to worldwide safe and sound, including USA, Europe, Eastern Europe, South America, Middle East and so on. When receive your payment, we produce the machine, when we finished the machine, will help you book the ship, the shipping to you.
Packaging Details
Packing:plywood case after packed by Wrapping film
Delivery Detail
within 15 working days after recieved the deposit
