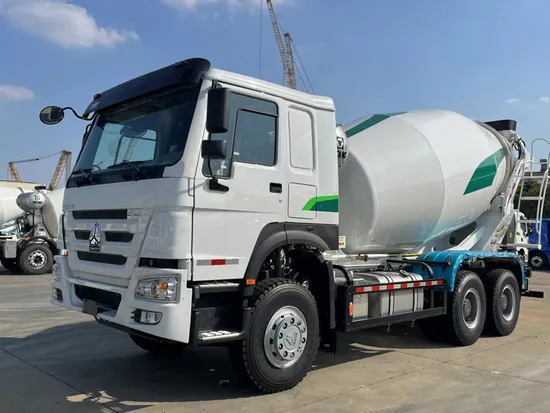

10cbm Concrete Mixer Truck G10V with Sinotruk Chassis

Product Description

Product Description
Product Features: The large-bend arc-shaped blade technology with independent IPR is used at rear cone to improve charging and discharging speed by 10% Material sealing blade + low tilt-angle drum are designed to make the angle 5% lower than that of its counterparts and thestability improved by 18% under equivalent loading capacity.
Optimized matching of drum body and blade steel plate realizes equivalent service life of mixing system.
Domestically originated cold stamping rebound compensation technology is used to provide high.er blade molding accuracy.
Structural parts adopt the painting technology of twice ball blasting + twice priming paint + twice finish paint, more durable.
Specification:

Item	Unit	Parameter
Agitating volume	m³	10
Curb weight	kg	14600
Max.total weight	kg	25000
Outline dimension	mm	9510×2500×3970
Chassis model	-	ZZ1257N3841W
Driving type	-	6×4
Wheel base	mm	3825+1350
Engine	-	WD615.69
Max.power	kw	247
Emission standard	-	Euro II
Water tank	L	450

Company Profile
Packaging & Shipping
FAQ
Q1: Are you a trader or a manufacturer? A1: We are manufacturers. We have exhibition rooms, truck maintenance workshops and professional workers for sale. Q2: How to do after-sales service? A2: We will give video guidance by phone or computer. You can tell our sales staff about any use problems, and we will give you guidance. Q3: What is the transportation process? A3: For the field of trucks, most of the services we use are bulk shipping services. Q4: May I visit your factory? A4: Welcome to visit our seminar. We are located in Shandong and prefer face-to-face conversation. Question 5: What kind of payment terms do you offer? A5: We can do TT, LC, 50% in advance and 50% before shipment.

---
