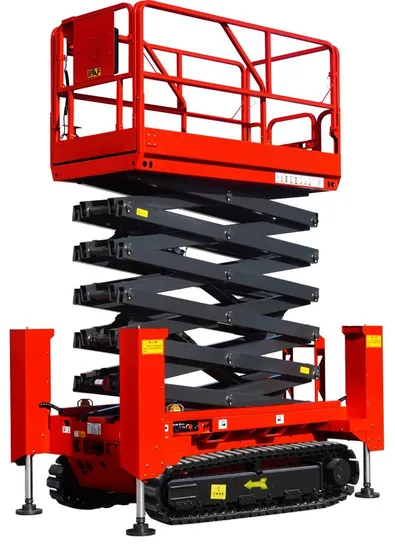

Titeco Aerial Work Platform Gtjz 6m 8m 10m 12m 14m 16m Self-Propelled Mewp Electric/Diesel Power Hydraulic Scissor Lift/Cherry Picker/Man Lift with CE

Product Description

Technical Specification

Model	GTJZ06	GTJZ08	GTJZ10	GTJZ12	GTJZ14
Max. Working Height	8.00m	10.00m	12.00m	14.00m	16m
Max.Platform Height	6.00m	8.00m	10.00m	12.00m	14m
Loading Capacity	320kg	500kg	500kg	320kg	320kg
Extension Load	113kg	113kg	113kg	113kg	113kg
Platform Dimension	2.27X1.11X1.11mm	2.27×1.11X1.11m	2.26×1.13×1.1m	2.29×1.13×1.1m	2.67×1.13
Overall Size (Guardrail not folded)	2.48×1.15×2.22m	2.48×1.15×2.22m	2.48×1.15×2.42m	2.48×1.19×2.55m	2.81×1.25×2.75m
Overall Size (Guardrail folded)	2.48×1.15×1.68m	2.28×1.15×1.68m	2.48×1.15×1.97m	2.48×1.19×2.10m	2.81×1.25×2.1m
Platform Extension	0.9m	0.9m	0.9m	0.9m	0.9m
Min. Ground Clearance	0.1/0.02m	0.1/0.02m	0.1/0.02m	0.1/0.02m	0.1/0.02m
Wheelbase	1.89m	1.89m	1.89m	1.89m	1.89m
Turning Radius (Inner/outer)	0/2.2m	0/2.2m	0/2.2m	0/2.2m	0/3m
Lifting/Driving Motor	24V/3.3Kw	24V/3.3Kw	24V/4.5Kw	24V/4.5Kw	24V/3.3Kw
Lifting Speed	3-5m/min	3-5m/min	3-5m/min	3-5m/min	3-5m/min
Driving Speed (Standard)	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Driving Speed (Lifting)	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Battery	4×6V/230ah	4×6V/230ah	4×6V/225ah	4×6V/200ah	4×12V/150ah
Charger	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A
Max. Climbing Ability	25%	25%	25%	25%	25%
Max. Slope	2°/3°	2°/3°	1.5°/3°	1.5°/3°	1.5°/3°
Tire	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ590×190mm
Total Weight	2040kg	2130kg	2580kg	2860kg	3600kg

Introduction:
GTJZ Series is one of the relatively advanced aerial work equipment, can walk, when the highest height potholes provides maximum safety protection system, operation automaticity, extremely safe ground clearance, make indoor possible operation, strong, reliable, easy maintenance, standard parts, no trace tires, slope, alarm, dual wheel speeds, free turning device, charging indicator, timer, emergency descent system. Is one of the relatively advanced aerial work equipment, can walk, when the highest height potholes provides maximum safety protection system, operation automaticity, extremely safe ground clearance, make indoor possible operation, strong, reliable, easy maintenance, standard parts, no trace tires, slope, alarm, dual wheel speeds, free turning device, charging indicator, timer, emergency descent system.
Our scissor lift has high safety and durable quality, providing longer service time and minimum downtime. As a professional manufacturer of scissors sets in northern China, we have provided thousands of scissors sets to the Philippines, Brazil, Peru, Chile, Argentina, Bangladesh, India, Yemen, Saudi Arabia, United Arab Emirates, Malaysia, Thailand and other countries.
Features:
Shipping:

---
