Product Description
Product Description

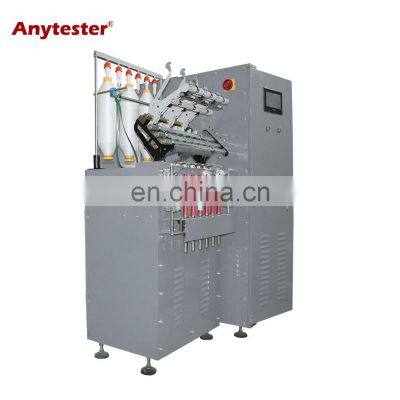

Product DescriptionAT206 Laboratory Ring Spinning Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT206 Laboratory Ring Spinning Machine is used to spin yarn from roving by ring spinning method.SpecificationModelAT206 Number of spindles6Fiber typeCotton or cotton-type chemical fibersCustomized for woolTwist range50~250twists/meterDraft rangeApprox. 2~50Output capacity0.25~0.5kg/hRoll diameter¢25mmRing diameterΦ38 ~ 45mmSpindle speedMax. 12000rpmTwist directionZ or S, settablePower supplyAC220V 50Hz, 550WDetailed ImagesMini machine, save researching cost and easy to operate and maintain;Touch screen & PLC control;Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;Frequency converter of high efficiency to control roll speed;Pressurizing system :spring pressure cradle;Three-up-three-down drafting structure;Packing & DeliveryPackagingSize(cm)130(L) * 90 (W) * 180 (D)Weight400KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment ItemT/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIF30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 50,000usdDelivery Time7~10 days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting Us ERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986
>>
