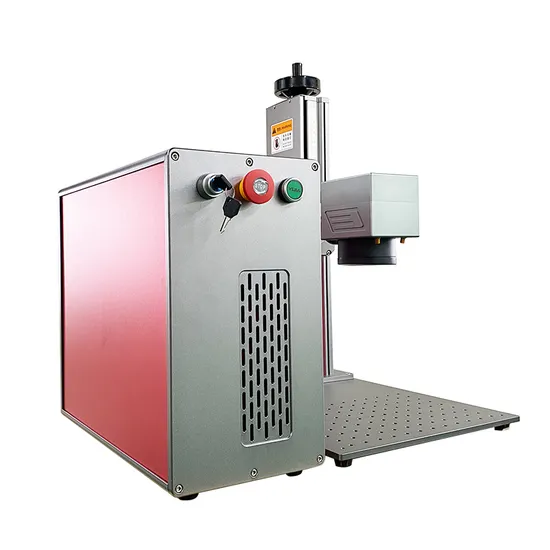

China 30W Split Portable Fiber Laser Marking Machine New Style Separate Fiber Laser Marking Machine 30W for Cooper

US$1,700.00 1 Piece (MOQ)

Basic Info.

Model NO.
FS4-3
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Keywords
Fiber Laser Marking Machine
Function
Making Metal&Non Metal
Laser Power
20W/30W (QS)
Motherboard
Bjjcz
Software Support
Support Windows XP/7/8/10
Support Material
Metal&Non Metal
Laser Source Brand
Raycus
Max Position Speed
7000mm/S
Continuous Working Time
Continuous Working Time
Pulse Duration
90-120ns
Frequency
30kHz~80kHz
Min. Linear Width
0.01mm
The Whole Power Consumption
500~600W
Marking Depth
0~1.0mm
Supported Image Format
BMP,JPG,JPEG,GIF,Tga,PNG,TIF,Tiff Ai,Dxf,Jpc,Plt,S
Transport Package
Wooden Box
Specification
30kg
Trademark
LAMBD
Origin
China
HS Code
8456110090
Production Capacity
3000sets/Year

Packaging & Delivery

Package Size
79.00cm * 41.00cm * 75.00cm
Package Gross Weight
53.000kg

Product Description

Specification
Laser source brand RAYCUS/MAX/JPT Laser source power 20W/30W/50W
Max single pulse energy 0.67mj Cooling system Cooling system
Pulse duration 90-120ns Core Components laser source, field lens, Galvo scanner, motherboard
Laser wavelength 1064nm Marking depth 0~1.0mm
Frequency 30KHz~80KHz Spot size 43um
Laser power density 80ZMW/mm2 Min. linear width 0~1.0mm
System environment WINDOWS XP/7/8/10 Repeat accuracy 0.005mm
Supported Image format BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFFAI,DXF,JPC,PLT,SVG,BOT,DST Max position speed 7000mm/s
