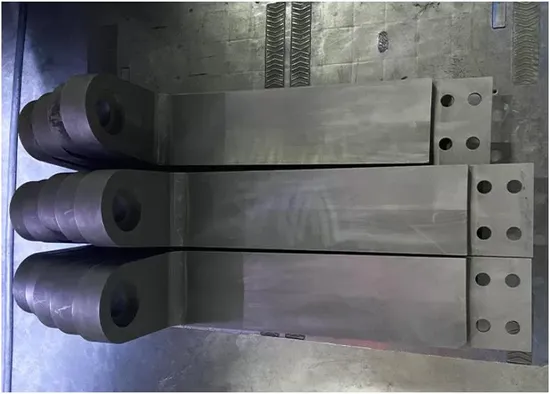

Customized Electrode Connecting Plate for Single Crystal Heater

Product Description

Customized Electrode Connecting Plate For Single Crystal Heater
Product details:
Customized Electrode Connecting Plate For Single Crystal Heater Features:
1. High mechanical strength .As the temperature rises, the graphite strength increases
2. High temperature resistance
3. High heat conductivity
4. Hihg anti-oxidation
5. Good heat shock resistance
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability, strong corrosion resistance to acid and alkali liquid
8. Small thermal expansion coefficient
Customized Electrode Connecting Plate For Single Crystal Heater Materials:
We can machine various types of graphite connector according to customers' designs.
Typical property Data JC-Molded graphite

Properties	Unit	Numerical value
Bulk Density	g/cm3	1.83
Specific Resistance	μΩ-m	15
Ash Content	ppm	50
Porosity	%	17
Compressive Strength	Mpa	72.6

*Value might be changed due to material size
Typical property Data JC-HLM

Property	Unit	Value
Bulk density	g/cm3	1.75
Max. grain size	mm	0.8
Specific electrical resistivity	µΩm	7.5
Young's modulus (dynamic measurement)	Gpa	10
Flexural strength	Mpa	17
Compressive strength	Mpa	42
Thermal expansion(20-200°C)	10-6K-1	2.5
Thermal conductivity	Wm-1K-1	140
Ash value	ppm	<=20

*Value might be changed due to material size JC-G347 Property Unit Value Bulk density g/cm3 1.85 Specific electrical resistivity µΩm 11 Young's modulus (dynamic measurement) Gpa 10.8 Flexural strength Mpa 49 Shore hardness 58 C.T.E X10-6/°C 5.5 Thermal conductivity W/mk 116
*Value might be changed due to material size
Typical property Data JC-GSK

Property	Unit	Value
Bulk density	g/cm3	>=1.72
Specific electrical resistivity	µΩm	<=8.5
Max. grain size	mm	0.8
Flexural strength	Mpa	>=13.5
Compressive strength	Mpa	>=30
C.E.T	X10-6	<=2.5

*Value might be changed due to material size Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
Our company is a professional production and export of graphite products enterprises, our company has complete production equipment, complete supporting facilities, strong technical force, product quality, supervisors and workers have more than ten years of experience. Our factory is located in Qingdao. We believe that thanks to our high quality graphite materials and molded graphite parts at very competitive prices, professional services, extensive product knowledge and technical expertise can help you save a lot of resources, improve your efficiency and meet more customer needs.

---
