US$1,600.00-50,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Object
Basalt, Rock Stone, Quarry
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Adjustable Tongs
Transport Package
Container
Production Capacity
1-500tph
Product Description
Hello boss, I am very honored that our products have been chosen by you, we will do our best to help you solve your troubles.
Application
It can process various ores such as limestone, granite, basalt and river pebble. It is used in sand and gravel plant, mining, coal mining, concrete mixing station, dry mortar, power plant desulfurization, quartz sand and other industries.
Product Description

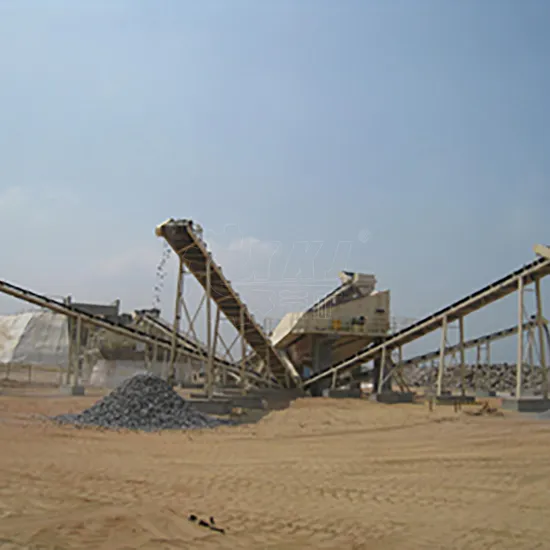

First, the stone material is uniformly fed into the jaw crusher by the feeder for preliminary crushing, and then the generated coarse material is conveyed by the belt conveyor to the impact crusher for further crushing.
The finely crushed stone enters the vibrating screen and separates the stones of different specifications. The stones that do not meet the particle size requirements are returned by the belt conveyor to the impact crusher for re-crushing, forming a closed circuit multiple cycles.
The finished product size can be combined and graded according to the user's needs. In order to protect the environment, auxiliary dust removal equipment can be equipped.
In the stone production line, the hardness of the broken material does not exceed 320Mpa, such as granite, basalt stone, etc., all of which are applicable to the secondary crushing process. The main equipments are: vibrating feeder - deep cavity rupture (primary crushing) - stone crusher (second stage crushing, can be impact crusher, hammer crusher, impact crusher) - vibrating screen - finished stone, conveying material in the middle by belt conveyor.
When the hardness of materials is no more than 150Mpa, in order to save customer costs and improve work efficiency, primary molding equipment is generally adopted. Its main equipment is: vibration feeder -- hammer crusher -- vibration screen -- finished stone, and belt conveyor is used to transfer materials between the equipment
Product Parameters
Max feeding size (mm)
| Capacity (t/h) | Feeding machine | Primary crushing | Second stage crushing | Vibrating screen | Belt conveyor (m) | Installed power (kW) |
| 340 | 30 | GZD8030
(3kW)
| PE400*600
(30kW)
| PF1008
(45kW)
| 2YK1235
(5.5kW)
| 60-90
(20kW)
| 120
|
| 340 | 50 | GZD8530
(4.4kW)
| PE400*600
(30kW)
| PF1008
(45kW)
| 3YK1235
(11kW)
| 100-130
(30kW)
| 140 |
| 420 | 80 | GZD9636
(10kW)
| PE500*750
(55kW)
| PF1010
(75kW)
| 3YK1545
(22kW)
| 130-160
(30kW)
| 200
|
| 480 | 100 | GZD9638
(13kW)
| PE600*900
(75kW)
| PF1210
(130kW)
| 3YK1545
(22kW)
| 140-180
(40kW)
| 280 |
| 560 | 150 | GZD1142
(13kW)
| PE750*1060
(90kW)
| PF1214
(130kW)
| 3YK1854
(22kW)
| 200-400
(50kW)
| 300
|
| 630 | 200 | GZD1142
(13kW)
| PE750*900
(90kW)
| PF1315
(140kW)
| 3YK1860
(30kW)
| 200
(40kW)
| 350 |
| 630 | 250 | GZD1149
(17kW)
| PE750*1060
(110kW)
| PF1214
/2 (180kW)
| 3YK2160
(30kW)
| 200
(40kW)
| 400
|
| 630 | 300 | GZD1249
(17kW)
| PE900*1200
(110kW)
| PF1315
/2 (180kW)
| 3YK2160
(30kW)
| 250
(50kW)
| 450 |
| 700 | 350 | GZD1349
(17kW)
| PE1000*1200
(132kW)
| PF1315
/2 (250kW)
| 3YK2460
(30kW)
| 250
(50kW)
| 500
|
| 700 | 450 | GZD1349
(17kW)
| PE1000*1200
(132kW)
| PF1315
/2PF1214(300kW)
| 3YK2160
/2 (60kW)
| 350
(60kW)
| 600 |
The parameters are for reference only. The specific device needs to be configured according to the actual situation.
Advantages
This stone material production line is highly automatic, and the complete production line does not need manual operation except for the machine's starting and stopping and daily maintenance.
It has high production efficiency, low operation cost, large output, high yield, uniform stone particle size and good grain shape, and meets the national high speed material requirements.
Henan Xingyang Mining Machinery Manufacturer of stone crushing screening combination equipment in the design of technological process, due to various crushing equipment reasonable matching, and rigorous cross space layout, so it has a cover an area of an area small, investment high economic benefit, the quality of the ballast, powder characteristics of low productivity, equipped with advanced electronic control operating system at the same time, to ensure that the entire process discharging unobstructed, reliable operation, convenient operation, high efficiency and energy saving.
After Sales Service
Pre-sale service
Process designing
Freely provide project designing
Choosing suitable equipment for you
Medium-sales service
Complete process of export
Draft the construction scheme and detailed process
Accompany you to complete the acceptance of the equipment
After-sales service
Good and fast arrangement for the shipment
We sent engineer to the scene to guide installation debugging and training operators
Company Profile
Henan Xingyang Mining Machinery Manufactory have five standard heavy industrial workshops covering 80,000 square meters,more than 160 machines used for gold processing,plug welding and assembling with large and medium sizes, and more than 500 works including over 50 administrators with intermediate and senior title and engineering technicians.And senior title and engineering technicians. Our company produce and design mining equipment according to customer requirement.
We have manufactured are Crushing equipment, Grinding equipment, Classifyingequipment, Flotation equipment, Agitation Tank equipment, Screen equipment, Magnetic Separation equipment, Feeding equipment, Drying and Sintering equipment, Thickening equipment, Disc Pelletizer equipment, Bucket Elevator equipment, Conveying equipment.
>>
