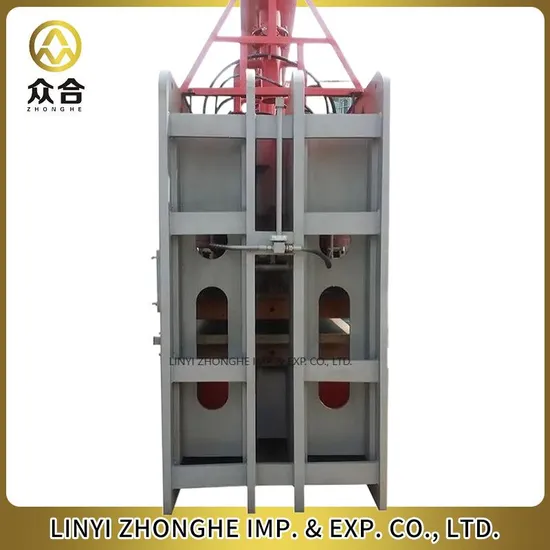

Laminated Particle Board Hot Press Machine for Furniture Plywood Hot Press Machine

Product Description

Product Parameters

1	Model	BY61-48-1200T
2	Function	press melamine paper onto MDF, particle board
3	Production capacity	1200 sheets in 10 hours
4	Board loading direction	from 2600mm side of the machine
5	Hot platen size	1400*2600*120mm
6	Quantity of hot platens	2 sheets
7	Quantity of floors	single floor
8	Distance between hot platens	300mm
9	Hydraulic cylinders	6 units diameter 320mm, 2 units diameter 110mm
10	Pressure capacity	1200 tons
11	Stroke of hydraulic cylinders	300mm
12	Hydraulic cylinders place	Top
13	Hydraulic system	pump 10ml/rev, prefill valve,hydraulic manifold block
14	Hydraulic system limit pressure	25 M pa
15	Control method	Manual and Automatic control
16	Hot platen closing time	about 5 Seconds
17	Motor Power	5.5KW
18	In feed method	frequency control loading car
19	Out feed method	roller bracket
20	Frame style	Combination frame, two groups of frames

Detailed Photos

Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine, plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.The detail business range is as following:1-wood veneer production machine:Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.2-plywood production machine, film faced plywood machine:Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.3- Particle board machine and MDF board machine.4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.

Packaging & Shipping

FAQ
Frequently Asked Questions
1. What products does your company offer?
Our company mainly provides equipment for the plywood and veneer industry. Our main products include:
• Wood Veneer Machines
• Plywood Making Machines
• Related Equipment and Accessories (both main machines and auxiliary equipment)
Additionally, we offer import and export agency services to help facilitate trade in the industry.
2. What is your delivery timeline for the products?
We provide customized delivery schedules based on specific product requirements and customer needs. The exact delivery time will depend on the type and quantity of equipment ordered.
3. What warranty do you offer on your products?
We offer a one-year warranty on major components of our machines. The warranty covers manufacturing defects and issues related to the main parts of the equipment. Specific warranty details will be provided along with the product's technical specifications.
4. Do you provide installation and after-sales services?
Yes, we offer comprehensive after-sales support:
• Online Support: We provide video tutorials, technical drawings, and installation manuals to assist with the setup and operation of our equipment.
• Offline Support: Our experienced technical staff can assist with on-site installation and commissioning, ensuring that the machines are properly set up and fully operational.
5. Which countries do you frequently export to?
We regularly export to various countries, including:
Brazil (where we have local distributors),Argentina,Paraguay,Fiji,Pakistan,Bulgaria,Ghana Etc.
We have experience working with these countries and can visit their factories and see our machines.

---
