Mineral Processing Crushing Plant Machinery for Barite Fluorite Mica Dolomite Pyrophyllite Mineral Phosphorite Marble Powder Plant

Product Description

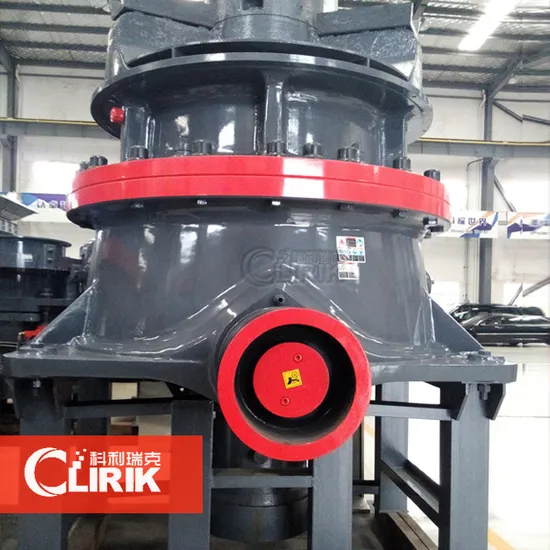

Spring cone crusher
1. Robust and reliable design for hard stone crushing.
2. High productivity with lowest total cost.
3. Standard crushing chambers are available for each model.
Parameter of Spring cone crusher

model	Max Feed Size (mm)	Discharge opening (mm)	Capacity (t/h)	Power (kw)	Weight (t)
PYD2200	100	5-15	120-340	280-260	75.3
PYZ2200	230	10-30	200-580	280-260	74.6
PYB2200	300	30-60	59-1000	280-260	75
PYD1750	85	5-13	75-230	160	50.2
PYZ1750	185	10-30	115-320	160	50.3
PYB1750	215	25-50	280-480	160	50.3
PYD1200	50	3-15	18-105	110	25.3
PYZ1200	100	8-25	42-135	110	25
PYB1200	145	20-50	110-168	110	24.7
PYD900	50	3-13	15-50	55	11.3
PYZ900	60	5-20	20-65	55	11.2
PYB900	115	15-50	50-90	55	11.2
PYD600	35	3-13	12-23	30	5.5
PYB600	65	12-25	40	30	5

Introduction of spring cone crusher
Spring cone crusher is a kind of cone crusher which is manufactured in the former Soviet Union; It combines 1980s international technology and kinds of cone crushers' technology. The spring safety device is the overload protection device which can avoid the damage to the machine when metallic foreign body entre through the crushing cavity. The capacity of this machine is very big, owning to the technology of laminated crushing, finished products are mainly cubic shape and less needle-flake material. It is widely used in industries of metallurgy, architecture, road construction, chemical industry, phosphate. It is the preferred choice for secondary crushing equipment which is used for hard and medium mineral rock such as iron ore, copper ore, limestone, quartz, granite, basalt and dolerite.
Material of spring cone crusher
Working Principle of cone crusher
When the Gravels Spring Cone Crusher works, motor drives V-Belt, big belt wheel, transmission shaft, bevel pinion and bevel gear pinion to make eccentric bushing rotate. Crushing cone axis is forced by the eccentric bushing to spin, which makes mantle sometimes close to the bowl liner, and some times far away from the bowl liner. Therefore, materials in the annual crushing chamber formed by fixed and mobile cones are continuously impacted, squeezed, curved and crushed. After repeat procedures, materials are crushed into required size and discharged from the outlet of cone crusher.
Advantages of cone crusher
1. The moving cone of this machine rotates continuously, the process of material crushing and products discharge carry out alternatively and continuously along the work surface, thus the product efficiency improved a lot by this solution. There is a equally parallel gap between the moving cone and the fixed cone, so the grain size of finished products are uniform.
2. Longer using life, reliable operation
Two kinds of sealing: Dry oil or water makes sure that the dust can't enter the body. This solution can guarantee the cleanness of lubricating oil, extend the life of spherical bearings, and make the machine operate reliably.
3. Low operating cost, wide field of application
Due to large capacity, high reliability, easy maintenance, this machine can reduce the production cost heavily. It promotes the cone crusher to achieve greatest performance. It is applied for kinds of crushing technics: Primary crushing to fine crushing; Stationary crushing plant to mobile crushing plant.
Transport of cone crusher Packaging: Conventional Packaging suitable for long distance transportation.

Shipping: 10-30 working days after recieving the deposit of the devices.
Other Product Offered

Ultrafine vertical Roller Mill	Raymond Mill	Coating Machine
Finished Size: 600-4500(mesh) Capacity: 3-20(t/h) Pass rate: D50 2 micron	Finished Size: 50-450(mesh) Capacity: 1-28(t/h) Pass rate: D90 30 micron	Used to stone powder modification machine

Company Brief Introduction
Our company
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china, as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of grinding mill, all kinds of crushers from coarse grinding mill, fine grinding mill and ultra fine grinding mill, grinding mill related equipment, such as powder modifying machine, powder packing machine. Powder conveying system, etc. We have devoted into grinding field for more than 30 years, we belive only focus can be professional.
Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.
Our certificate
Our Major sales markets
FAQ
Inquiry Service of cone crusher
1. What is the raw material do you want to process?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the output size of your product?
We hope you can tell us these details, we will give you the best quotation, technical data and solution drawing ASAP, thanks. Your satisfaction is our greatest pursuit, we would like to sincerely for your service! We look forward to your inquiry!

---
