100kN to 1000kN Wire Rope Cable Pulling Hydraulic Winch

Product Description

Marine hydraulic winch
Product Description

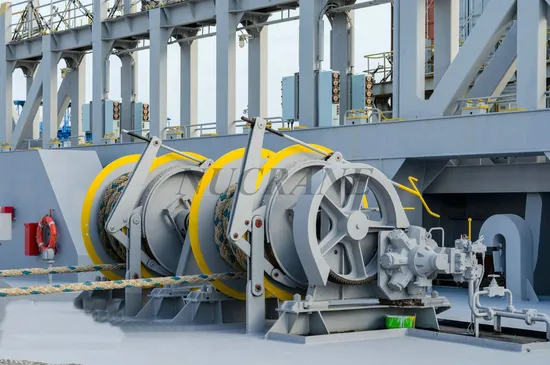

Marine hydraulic winch is usually with heavy rated load and widely applied on ship, on the dock or on the offshore platforms for lifting, pulling, towing, mooring etc. It is welcomed by customers especially for heavy-duty marine work and operations. There are built-in hydraulic winch, exposed hydraulic winch, high speed hydraulic winch and low speed hydraulic winch.
The main components of the winch include: hydraulic motor (low speed or high speed motor), hydraulic NC multi-plate brake, gearbox, clutch (optional), drum ( single drum or double drum), support shaft, frame spooling device (optional) etc. The winch motor has high mechanical efficiency. The brakes and gearbox are installed in the winch drum, and the drum, support shaft and frame are designed in accordance with mechanical requirements, which makes the overall structure simple and reasonable with sufficient strength and rigidity.
Our Advantages
In structure: the winch structure is compact, and it has nice appearance with small volume and light weight, etc.;
In function: the hydraulic winches have high safety and efficiency, large starting torque, good stability with low speed, low noise, reliable operation etc;
In application: the marine hydraulic winches can be used on ship deck, in port, on offshore platforms and so on. They can be used for anchoring, mooring, towing and other marine operations, to meet different work requirements, there are marine hydraulic towing winch, hydraulic anchor winch and hydraulic mooring winch supplied by us.

Product Expansion
In terms of structure, the winch is characterized by compact structure, beautiful appearance, small volume and light weight;
Function: the hydraulic winch has the characteristics of safety and efficiency, large starting torque, good low-speed stability, low noise and reliable operation;
Application: marine hydraulic winch can be used for ship deck, port, offshore platform, etc. They can be used for anchoring, mooring, towing and other offshore operations. To meet different operation requirements, we provide marine hydraulic towing winch, hydraulic anchor winch and hydraulic mooring winch.

Product Parameters

Main specification and parameters for hydraulic mooring winch
Name	Rated pull(kN)	Rated Speed(m/min)	Drum Capacity(m)	Motor Power(kW)
10kN hydraulic winch	10	≥12	¢11×150	5.5
20kN hydraulic winch	20	≥12	¢15×150	11
40kN hydraulic winch	40	≥15	¢17.5×151	22
50kN hydraulic winch	50	≥15	¢20.5×152	30
75kN hydraulic winch	75	≥15	¢26×153	45
100kN hydraulic winch	100	≥12	¢30×200	45
160kN hydraulic winch	160	≥12	¢32×250	75
200kN hydraulic winch	200	≥9.6	¢41×250	75
250kN hydraulic winch	250	≥9.6	¢44.5×250	90
315kN hydraulic winch	315	≥7.8	¢52×250	90
400kN hydraulic winch	400	≥7.8	¢56×250	110
450kN hydraulic winch	450	≥6	¢56×250	110
500kN hydraulic winch	500	≥6	¢58×250	110
560kN hydraulic winch	560	≥6	¢64×250	132
600kN hydraulic winch	600	≥6	¢64×250	132
650kN hydraulic winch	650	≥5	¢70×250	132
1000kN hydraulic winch	1000	≥4	¢85×250	132
1200kN hydraulic winch	1200	≥4	¢95×250	160
1500kN hydraulic winch	1500	≥4	¢95×250	200
1800kN hydraulic winch	1800	≥4	¢95×250	250
2000kN hydraulic winch	2000	≥4	¢100×250	270

Notes:This form has not been listed in the specification and dimension can be customized according to user's requirements.
Packaging & Shipping
After Sales Service
Our After-sale Services-- within 24 Hours:
(1) Before--Sale Service :
01:Quality Control: Strictly Production Request base on signed contract ;
02:Delivery Time: Guarantee within contracted delivery time ;
03:Photos: Send photos to our customer after finish production and packing ;
04:Packing Details:Give complete packing size table to our customer;
05:Brand: Respect our customers' advice to use our customers' own brand & logo ;
06:Documents:Provide high efficiency service to post you all required customs clearance documents by DHL or TNT .
(2) After--Sale Service :
01:Reply : Fast reply all your questions on line or by email or by telephone ;
02:Quality Problems:Our factory is responsible for any problems if it is resulted by our reasons (Such as give you free new parts to repair it or give enough some compensation cost to you) ;
03:Safe Operating: Pls remind your customers to respect our Operating Manual to operate our machine rightly, to guarantee Safe when operate our machine.

---
