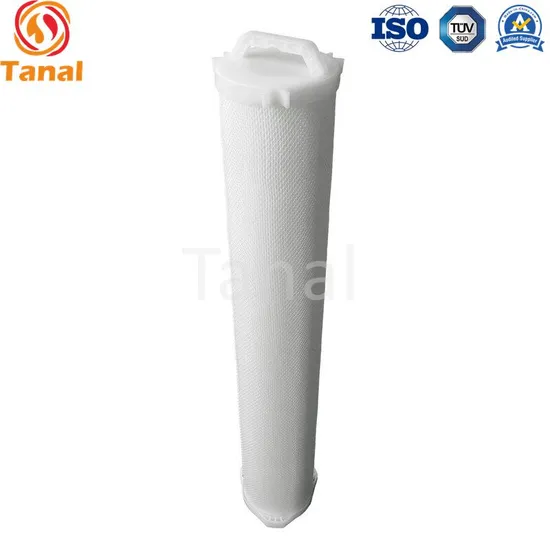

High Flow Filter Cartridge for Pentair Aqualine ALN05-60B Replacement Equivalent

Product Description

Product Description General Information
TaFlow Line series polypropylene pleated high flow filter cartridge is specifically developed to provide higher flow solution for particulate removal in clarification and prefiltration of process, representing a highly-optimized pleated filter technology. TaFlow Line is a large diameter, single open ended, pleated cartridge with an outside to inside flow direction, allows for maximum filtration area, extending service life for change-out. The high flow by large filtration area reduces the quantity of filter cartridge and the size of housings required. The polypropylene construction offers broad chemical compatibility. The unique filtration media of polypropylene results in an excellent filtration efficiency, which largely reduces the burden of downstream process for particle removal applications, such as portal water, cooling water, RO systems, oil fields and other industrial fields etc. Features Micron retention ratings from 0.5 to 50 microns Ergonomically designed handle. High surface area, high flow rates with low pressure drops Benefits Reduce capital expenditure by fewer cartridges and housings used. Reduce operational expenditure by reduced cartridge change-out frequency, downtime, product waste, labour and disposal costs with longer service life. Ideal choice for a wide variety of process applications. Highly durable polypropylene construction, broad chemical compatibility, suitable for rigorous process conditions. Safe, faster and easier filter change-out. Direct and economical filter cartridge replacement. Applications Food & Beverage Pharmaceutical Potable water Process water Cooling water for power generation Reverse osmosis pre-filtration Petrochemical and chemicals Industrial condensate water Wastewater reuse Municipal water, etc. SpecificationsEffective Filtration Area (EFA): ≥ 6 m2 (64.6 ft2) per 40" (1016 mm)
Materials of ConstructionFilter media: microfiber polypropylene
Support/Drainage material: polypropylene
Hardware: polypropylene
End cap: Glass fiber reinforced polypropylene
Sealing: Thermal bond
O-ring: NBR (nitrile), EPDM (ethylene propylene), Silicone
Dimensions (nominal)
Outer diameter: 171.5 mm (6.75")
Lengths: 1,016 mm (40"), 1,524 mm (60")
Removal Rating: 0.5 μm, 1 μm, 5 μm, 10 μm, 20 μm, 50 μm
Purity: free of surfactants, resins, binders and adhesives.
Regulatory complianceTaFlow Line series filter cartridges are designed, developed and manufactured in accordance with a Quality Management System approved by an accredited registering body to an ISO 9001 Quality Systems Standard and are shipped with a Certificate of Quality.
All components of TaFlow Line series filter cartridges are Food and Drug Administration (FDA) listed for food contact use in the Code of Federal Regulations (CFR) Title 21 (177.1520 and 177.2600) and conform to the relevant requirements of Regulation (EC) 1935/2004 for their intended food contact applications and USP for the Biological Test for Plastics, Class VI.
For easy traceability and identification, every filter cartridge has a lot number. Operating ConditionsRecommended change-out differential pressure: 2.4 bar (35 psi) @ 20°C (68°F)
Maximum differential pressure:
5.2 bar (75 psi ) @ 20°C (68°F)
3.4 bar (50 psi) @ 82°C (180°F) for pleated polypropylene
3.4 bar (50 psi) @ 121°C (250°F) for pleated glass fiber
Maximum reverse differential pressure: 2.8 bar (40 psi) @ 20°C (68°F)
Maximum operating temperature: 82°C (180°F)
Recommended maximum recommended water flow rate
40" cartridge up to 1,325 lpm (350 gpm), 60" cartridge up to 1,892 lpm (500 gpm).
Pressure drop on flow rate:

Removal rating (μm)	Element pressure drop (mbar/m3/h)			Element pressure drop (psi/gpm)
0.5	7.86	3.8	2.56	0.0258	0.0125	0.0084
1	6.08	2.94	1.98	0.02	0.0097	0.0065
5	1.48	0.73	0.49	0.0049	0.0024	0.0016
10	1.04	0.52	0.35	0.0034	0.0017	0.0011
20	0.74	0.36	0.24	0.0024	0.0012	0.0008
50	0.46	0.22	0.15	0.0015	0.0007	0.0005

Unit conversion: 1 mbar = 0.0145 psi Ordering Guide

Cartridge	Material		Nominal Length		Removal Rating				O-ring Material
FCTFL	PP	=Polypropylene	40	=40"	05	=0.5 μm	10	=10 μm	N	=NBR
			60	=60"	1	=1 μm	20	=20 μm	E	=EPDM
					5	=5 μm	50	=50 μm	S	=Silicone

Example model: FCTFLPP605N refers to TaFlow Line series PP pleated high flow filter cartridge, 60", 5 μm, NBR O-rings, equivalent to Pentair Aqualine ALN05-60B. Certifications ISO 9001:2015 Quality Management Systems Certificate
TÜV Audit Certificate
Export License
Packaging & Shipping
Our Advantages 1. Customer-centric company culture
2. Efficient and flexible organizational system
3. 20+ years experience in membrane research, development and manufacturing
4. Better cost-effectiveness
Inquiry Handling Process
Order Handling Process
After Sales Service 1. Warranty granted.
2. Remote technical training, guidance and support.
3. On-site technical support for training, installation, commissioning, operation and trouble shooting.
4. Free replacement in warranty period.
Feedback Handling Process as below:
FAQ
Picking up the phone and having the plant manager yelling at you about undelivered membranes and filters?
Your customers are complaining to you about the high costs of existing membranes and filters?
Feel frustrated in prices when you are bidding?
Send your inquiry to us and get a quote for your project now!

---
