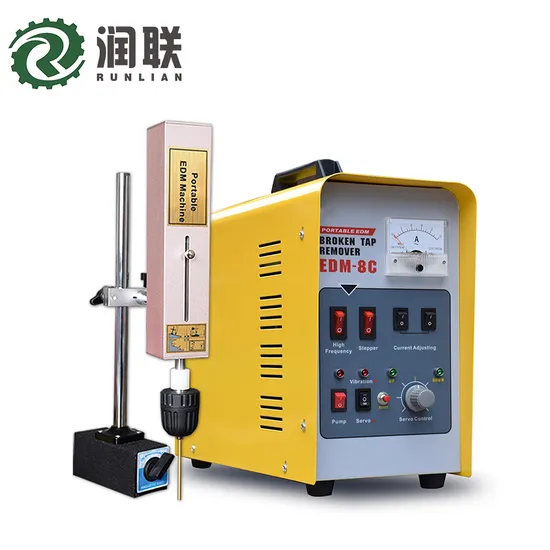

| Model | EDM-8C |
| Accessories | Toolkit |
| Imput Power(w) | 800 |
| Electrode Holder Diameter(mm) | 0.8-10 |
| Working Liquid | Tap Water |
| Max Process Depth of Spindle Servo(mm) | 70 |
| Short Hole Processing Speed(mm/min) | ≈1 Electrode φ4 |
| Processed Material | Quenched Steel |
| Power Box Size(mm): | 380*160*300 |
| Model And Size of Working Head(mm) | 300*50*50 |
| Package Size(mm) | 498*308*392 |
| Power Source Choices | 100V or 200V, 50HZ or 60HZ |
| Net Weight (kg) | 18 |
| Processing Range | * Fast remove broken taps, drill, drift, screw, plug gauge without damage to the workpiece. * Processing non-precision hole and marking on metal materials such as hardened steel, hard alloy steel and copper. |
| Broken Items | Size | Electrodes Recommended | Remarks |
| Tap | M3 | 1.5 | For the electrodes, the shorter is the better(there will be less jitter with short electrode) |
| M4 | 2.0 | ||
| M6 | 3.0 | ||
| M8 | 4.0 | ||
| M10 | 5.0 | ||
| M12 | 6.0 | ||
| M14 | 7*2 | Sheet electrode | |
| M16 | 8*2 | ||
| M20-M30 | 10*2 sheet electrode | Taps above M20 can be processed by several times | |
| Screw | M36-M20 | Method Recommended: drill a straight, triangular, square or hexagonal groove, and remove it with matching tools | |
