continuous annealing device for copper wire drawing machine

Product Description

Product Description

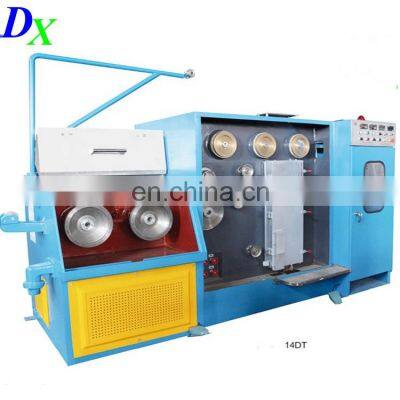

continuous annealing device for copper wire drawing machine
Product Description
Products introducation of continuous annealing device for copper wire drawing :
continuous annealing device for copper wire drawing deep popularity in the market of our customers and has high speed to 60 meter/minute.LTD-1000SP is a copper wire drawing machine and it bull block straight line with online annealer.The high speed/high efficient equipment with annealing copper wire drawing machine has biggest output to 1000kg .At the same time,it use PLC computer operating and our products belong to full automatical machine.We have confident in the quality of it and you will be satisfiled with it.
continuous annealing device for copper wire drawing is used for copper wire from 1.0-1.38mm to 0.08-0.65mm.
Main Features of continuous annealing device for copper wire drawing :1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution
Echnical specification of continuous annealing device for copper wire drawing :
Advantage of continuous annealing device for copper wire drawing :
1.Double inverter can keep the outlet wire precisely tension and the slip ratio of wire will be reduced to the minimum.
2. Machine’s body and other key components and parts are produced by our own factory, quality is reliable
3.High tension durably flat belt gain convenient replacement and low noise in operating.
4.we only use elcctronic components of international well-known manufactures,such as:Japan NSK bearing,Switzerland SKF belt,
France Schneider electric and Shenzhen Inovance inverter ,some machine can equip with SIMENCE PLC
5.we have gotten ISO 9001:2008,CE and TUV certificate.
Body structure: enblock casting
Material: HT200 grey cast iron
Advantages:
a. good stability
b. not deform
c. low noise
Features of continuous annealing device for copper wire drawing :
1.Powered motor
2.High speed
3.Smart programmable control and operation
4.High safety standard
5.Efficient and cost-effective.
6. Unity cast iron frame.
7. Transmits by high quality flat belts, maintenance easy , low noise.
8. Vertical designed drawing part, compact constraction.
9. Double inverter control slip, decrease the good appearance and quality.
Driven by high precise helical gears;particular oil lubrication mechanism;dual motors drive;
The capstan and die lubrication system is in emulsion spraying with force from inside of die holders design,in this way ,
the lubrication is more sufficient and it saves space,moreover,it makes operation more convenient;
Annealing contact copper rings,nickel tubes are made from special alloy; it can ensure a longer service life.
The annealer control system is in zero length preset voltage design, so that it can ensure stable annealing of wires in the process of machine start and stop.
A special machanism is designde to meet requirements of drawing bare copper wires ,tinned wires and silver plated copper wires.
Drawing wheel type: drum type
Advantages:
a. drum ring widening design(width: 65mm)
b. both two face can drawing: when one face wearing, can change another face continue to use(one drum can drawing above 10,000 tons in normal)
c. just only change the drum ring instead of whole drum while two face wearing, easy to operate and with lower cost
d. bigger bending radius(φ450mm), easy to threading and winding
e. equipped with high-power motor and inverter, suitable for long continuous production
f. tungsten carbide coated: with high hardness, wearable and low noise
Transmission type: high precision grinding oblique gear
Material: 20CrMnTi, processed by carburizing and quenching
Processing equipment: processed by gear grinding machine imported from Germany
Diffierent type of continuous annealing device for copper wire drawing :
About continuous annealing device for copper wire drawing :
1. Matching machines:
a. wire pointing and threading machine
b. hot/cold welding machine
c. air compressor
d. steam generater(if with annealing machine)
2. Matching parts:
a. wire bobbin
b.drawing mould/die
c.drawing oil
3. Matching documents:
a. investigation report
b. industry comparison table
c. output & consumption table
d. moulds/dies arrangement table
e. user's video
f. plant layout
g. foundation drawing
h. electric principle diagram
i. operating manual
j. inverter specification
Why let you choose us?
1.Production experience:Absorbed ,Professional for many years.
2.Each link strict control the quality
3.Our goals are not do the lowest price to do the best quality
4.Life provides you with technical guidance
5. The long-term supply all kinds of spare parts, make sure that you use perennial
6. To offer our customers workshop design
7. Choose a professional supplier will bring you more convenient
Packaging & Shipping
1.nude, plastic film packing high speed copper wire drawing making machine with annealer.
2.As per customers requirement for fine wire drawing with continuous annealer for electric production
Our Services
Pre-sale training:
In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes:
1)Correct operating mode
2)Correct maintenance way
3)Remove simple problem of our product
After-sale maintenance service is:
1)Both mechanical and electrical parts are provided six-month limited warranty.
2)Manufacturing experience with more than 20years
If you want to know more information about our products welcome to contact us in any time.
And welcome to our company! We display more new design in our products.
Company Information
Dongyi DongXing company is professional in making pellet machine, we hold that qualityfirst management idea. Wespecialize in wire drawing machine,
annealing machine,tinning machine, nail making machine and all kindsof accessories. Supply professional service of design and developing, production, sales and
installation and debugging, in every aspect of product implementation of strict quality control, OEM and ODM service as per customers’ request.
We has strong technical force, senior engineers and technicians team, introduce the lastet technology at home and abroad, by doing better research,
to make mechanical machines of good function, structure, process, and usability, favored by domestic and foreign customers. With professional team,
strict management, superior equipment, well received in India, Egypt, Pakistan, Vietnam, Thailand, Uzbekistan etc. With after-sales
service offices in more than 20 provinces and cities, supply efficient, quality and considerate
FAQ
Q:could we appoint the parts brand?
A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.
Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge
Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge
Q: could you do the design for the whole plant ?
A: Yes , we can.
Q: what is the difference with other supplier?
A: what we could offer to other customer is not only the machine itself, also we could offer: factory design,
production process design , QC control and education and assist machine and raw material offering .
Q:How long the guarantee:?
A: one year and charge for repair the whole life.
