NEMA 23 57 * 57mm Medical 3D Printer DC Electrical Stepping Stepper Motor

Product Description

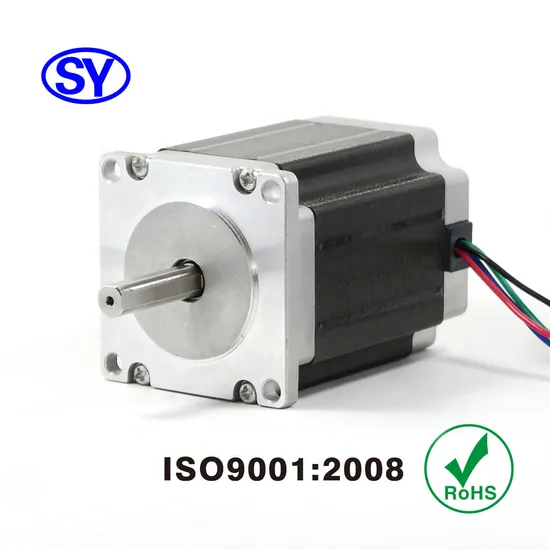

57 mm (NEMA 23) Medical Stepper Electrical Motor
Features:
High Torque
High Accuracy
Smooth Movement; Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included. The derived products are widely used in ATM machines, digital scanners, stylus printers, plotters, slot machines, CD-ROM drivers, stage lighting, camera lenses, CNC machines, medical machines, 3D printers, cleaning machines and quadcopter for industry and our life. All the derived products of us can be customized for your needs;
Product Description
1. Specifications:
Holding Torque: 930 mNm (131 oz-in)
Resistance per Phase: 0.76 ohm
Inductance per Phase: 3.3 mH
Rated Current: 1.2 A
Step Angle: 1.8° ± 5% full step, no load
Ambient Temperature: -24ºC - +60ºC
Relative humidity: 90% MAX
Resistance Accuracy: ±10%
Insulation Resistance: Larger than 100 mΩ 500V DC
Dielectric Strength: 600 V AC for 1 S, leakage current less than 1 mA;
2. Note:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the competitive price will be sent to you soon for your reference.
Pricing is decided by the motor's performance and parameters, more important by you requirments, contact us and get the latest the price list.
3.Payment term:T/T in advance, 30% deposit, 70% balance before shipment. Or LC at sight.

About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, all of raw materials comply with RoHS, contact us and talk details.
Contacts: Ms. Rita Law
Mobile: (+86) 13631101993
shengyangmotor.en.made-in-china.com

Motor Series & Length	Motor Model	Holding Torque	Shaft Length	Resistance per Phase	Inductance per Phase	Rated Voltage/ Rated Current
		mNm oz-in	mm in	ohm	mH	V / A
57BYGH0 31 mm (1.23 in)	57BYGH010-B-27	840 119	27 1.07	10	23	1.2
57BYGH1 52 mm (2.05 in)	57BYGH103-1	850 120	24 0.95	8	17	8/1.0
57BYGH2 56 mm (2.21 in)	57BYGH220-B-21	1240 175	21 0.83	2.4	5.8	2
57BYGH3 49 mm (1.93 in)	57BYGH301-A-27	1020 145	27 1.07	10	23	0.8
57BYGH4 49mm (1.93 in)	57BYGH401-B-27	900 128	27 1.07	8	33	0.6
57BYGH5 77 mm (3.04 in)	57BYGH510-C-31	930 132	31 1.23	0.76	3.3	1.2
57BYGH6 65 mm (2.56 in)	57BYGH601-C-22	1260 178	22 0.87	3.5	5.7	1.5
57BYGH7 98 mm (3.86 in)	57BYGH701-C-31	1380 195	31 1.23	1	3	1.5
57BYGH9 46 mm (1.82 in)	57BYGH910-B-27	1480 210	27 1.07	8.5	26	2

---
