US$0.49
500-499,999 Meters
Basic Info.
Insulation Material
Rubber
Material Shape
Round Wire
Wire Core Material
Red Copper Wire
Certification
ISO, CCC, CE
Transport Package

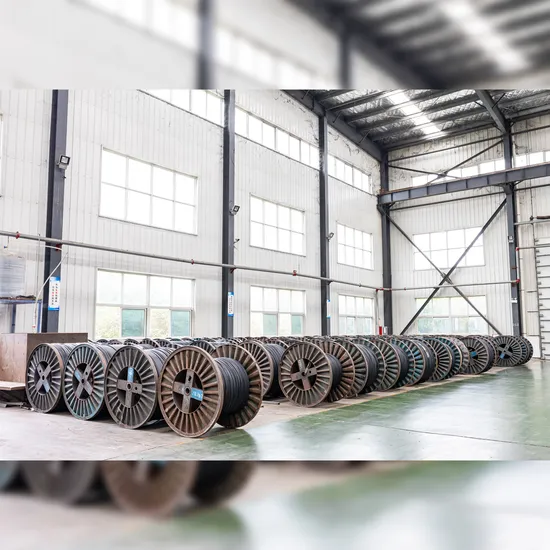

Reel, Drum
Specification
CE, SGS, CCC, ISO
Production Capacity
1000km per month
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
400.000kg
Product Description
Specifications
450/750 Flexible Copper/CCA Rubber Insulation Electric Welding Cable
Specifications
450/750 PVC insulation CCA welding cable
voltage AC 200V~DC 400V
Standards: IEC60245
Welding Cable
Detailed Product Description
1th. Service Conditions
This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.
2th. Model, Names Main applications and Work In the Temperature
Model |
Name |
Main applications |
Working temperature
of core ≤0C |
YH |
Natural Rubber Sheath for Welding Cable |
Always used indoor |
65 |
YHF |
Neoprene Rubber Sheath Welding Cable |
Always used outdoor |
65 |
Synthetic elastomer Sheath Welding Cable |
3th. Standards: IEC60245
4th. Specifications, Size, Weight and Technical Data
Conductor Nominal Section (mm2) |
Conductive Core |
Thickness of Section Sheath (mm) |
Average Outer Diameter (mm2) |
20oC Conductor Resistance≤(Ω/km) |
Reference Weight(kg/km) |
Number/Diameter of Core(mm) |
Min |
Max |
YH |
YHF |
10 |
322/0.20 |
1.8 |
7.5 |
9.7 |
1.91 |
146 |
153.51 |
16 |
513/0.20 |
2.0 |
9.2 |
11.5 |
1.16 |
218.9 |
230.44 |
25 |
798/0.20 |
2.0 |
10.5 |
13.0 |
0.758 |
316.6 |
331.15 |
35 |
1121/0.20 |
2.0 |
11.5 |
14.5 |
0.536 |
426 |
439.87 |
50 |
1596/0.20 |
2.2 |
13.5 |
17.0 |
0.379 |
592.47 |
610.55 |
70 |
2214/0.20 |
2.4 |
15.0 |
19.5 |
0.268 |
790 |
817.52 |
95 |
2997/0.20 |
2.6 |
17.0 |
22.0 |
0.198 |
1066.17 |
1102.97 |
120 |
1702/0.30 |
2.8 |
19.0 |
24.0 |
0.161 |
1348.25 |
1392.55 |
150 |
2135/0.30 |
3.0 |
21.0 |
27.0 |
0.129 |
1678.5 |
1698.72 |
185 |
1443/0.40 |
3.2 |
22.0 |
29.0 |
0.106 |
1983.8 |
2020.74
|
>>
