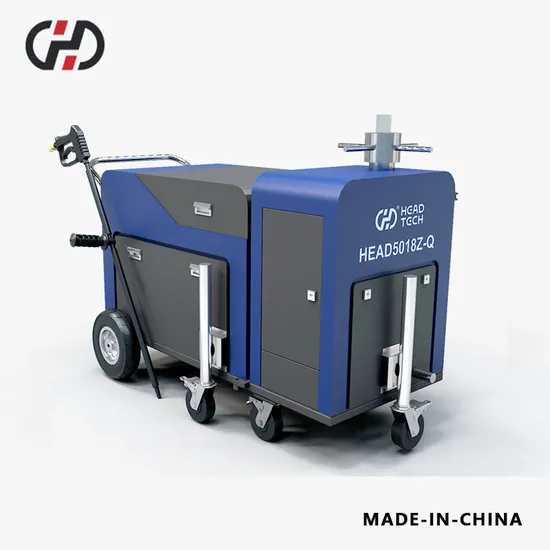

Cold Cutting No Gas Explosion Proof Safety Tank and Pipe Portable Water Jet Cutting Machine

Product Description

Product instruction
Portable water jet cutting machine mainly applied for pipeline , gas pipe,petrol pipe,oil tank, etc complex , dangerous cutting condition.There are two types of portable water jet cutting machine in the worldwide, now compared two type of portable water jet cutting machine:
waterjets pressurize water to high pressure and then mix water with abrasive just before water exits the cutting head. Abrasive is accelerted by high speed water in a mixing tube to receive kinetic energy. can meet complex cutting situation, ensure long time cutting.The other working principle for portable water jet cutting machine is pre-mix abrasive with water before it gets pressurized,this type can't continuously work and parts broken easily, add cost.
Advantages of portable water jet cutting machine.
1.This water jet system applied varity aspects, such as gas pipe cutting, bomb etc.
2. This portable water jet operates easily, without heat effect ,help to achieve safe cutting.
3.Can be used in cutting dangerous chemical objects directly.
4.Weight of the system light enough to be moved to any place for working purposes.
5.small volume, easy to move, explosion-proof machine
6.Compact structure, reasonable design and beautiful modelling.
7.Strong stability, to max the role of safety cutting
8.Can be applied to various chemical plants, underground mines, flammable and explosive oil and gas pipelines, tank cutting operations
Machine data

Item	Data
Max pressure	50Mpa
Continuous working pressure	30-45 Mpa
Main motor power	18.5KW
Max flow of pump	22L/Min
Power supply (option)	380V 50Hz 3phase
Diameter of orifice	0.84/1.02mm
Standard water amount	9L/12L
Standard abrasive amount	80-110Kg/h
Cutting speed (for 5mmcarbon steel)	180mm/Min
Intensifier pump size:	Length 1100×width 670×height1000mm
Intensifier pump weight:	About 350Kg
abrasive tank size :	Length400×width 400×height1300
Mixed abrasive tank weight:	About 180Kg
Mixed abrasive tank capacity:	50L
Abrasive	80mesh abrasive

Holding tool type
For different cutting need, we can customize different kind of holding cars to hold the cutting head to cut, then you can work in any kind of work and get more chance to work.
Machine application
The portable water jet cutting machine can be used in many field, such as the tank shell cutting for repairing work, and the pipe which has gas inside cut through, all kinds of work outside need to break.
Our Package (soft package or wooden case)
1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Machine certificate
We have the safty certifcate for the portable water jet cutting work
Our Service
1. Maintenance free of charge for 12 months .
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.
HEAD WATER JET MAKES CUTTING IS NO LONGER PROBLEM !

---
