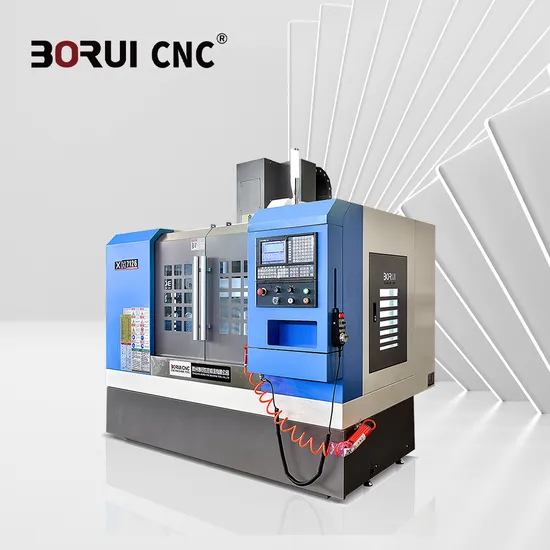

Xh7126 Vertical 4 Axis Fresadora CNC Milling Machine for Sale

Product Description

Xh7126 Vertical 4 Axis Fresadora CNC Milling Machine for Sale Product Description
This product X, Y, Z three-axis servo direct control semi-closed vertical machining center, three-axis linear ball guide, guide rail load, span wide, high precision, suitable for heavy load, compact structure and size reasonable, the spindle is servo motor driven by the timing belt. It can realize the clamping of various parts such as discs, boards, housings, cams, and molds at one time. It can be used for drilling, milling, boring, expanding, reaming, rigid tapping, etc. The production of medium and small batch products can satisfy the processing of complex and high-precision parts. The fourth rotary shaft can be equipped to meet the processing requirements of special parts..
CNC milling machine have stronger bearing capacity, three direction guide for quenching hardened rail, guide rail, wide span is big, reasonable, compact structure and dimension spindle for servo motor through the synchronous belt drive.Can be milling and drilling, reaming and reaming and other functions, can be achieved to the plate class, plate class, shells, mold and other complex, high precision parts processing, applicable to many varieties, in a variety of small parts of the plane, inclined plane,groove slots and other process, is the mechanical processing and mould manufacturing ideal processing equipment, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
1.vertical 3 axis mini fresadora cnc for sale : the body casting technology is advanced, the aging process, casting label
2.vertical 3 axis mini fresadora cnc for sale, guide rail are of high precision and high precision.
3. Two type change tool available, manual, pneumatic.
4.metal cvc milling machine with high precision and ATC can be used to step motor or servo motor, to provide customers with a good price.
5. metal cvc milling machine with high precision and ATC Can be customized according to customer requirements of the corresponding products. Product Parameters

Specificiton	XH7126
Worktable size (LXW)	800X260mm
T-slot (NXWXD)	3/14/80mm
X axis travel	450mm
Y axis travel	320mm
Z axis travel	450mm
Distance from spindle nose to worktable surface	90-470mm
Distance from spindle center to column	360mm
Rapid feed speed (X/Y/Z)	15/15/15 m/min.
Spindle taper	BT40
Spindle speed	6000rpm or 8000rpm
Main motor power	3.7Kw
Servo motor torque (X/Y/Z)	6/6/7.7 N.m
Overall size (LXWXH)	2100X1800X1960mm
Net weight	2400kg

Detailed Photos
Company Profile


FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online , or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.

---
