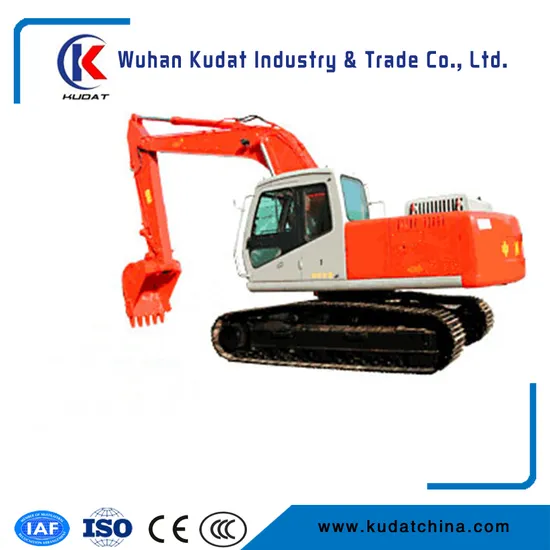

Good Quality 8 Ton Crawler Excavator

Product Description

1.FAVOURABLE APPEARANCE
2.WITH BOOM DEFLEXION AND QUICK-HITCH
3.HYDRAULIC PILOT OPERATION
4.SALES AND MARKETING SPARED ALL OVER THE WORLD
5.GOOD QUALITY AND STABLE PERFORMANCE
6.MAKING FULL USE OF ENGINE POWER TO LOWER ENERGY CONSUMPTION

ENGINE
Model	YUCHAI YC4108G
Cylinders	4
Bore/Stroke	108×115mm
Displacement	4.214L
Fuel injection	Direct
Fuel injection pump	Mechanical
Fuel	Diesel
Fuel filter	Full flow
Cooling	Water-cooling
Horswpower(net)	56kw @2200rpm
Maximum torque(net)	265N·m @1500rpm
BOOM/ARM
Boom
Swing
Length	3620mm
Boom weight	400kg
Arm
Length	1760mm
Arm weight	125kg
UNDERCARRIAGE
Number of rollers
Top,each track	1
Bottom,each track	6
Gradability	58%(30°)
HYDRAULICS
Pumps(3)	2×Variable displacement piston pump+gear pump
Capacity- Maximum	2×79L/min+53.6L/min
System relief pressure-
Standard	24.5MPa+24.5MPa
Pilot control hydraulic system-
Pumps(1)	Gear pump
Maximum capacity	19L/min
Relief pressure	3.5MPa
Control valves-
8 function multiple control valve
Pump #1 for right travel and boom function and bucket function
Pump #2 for left travel and arm function and dozer function
Pump #3 for house swing
Pump #4 for pilot valve
Swing-
Motor(1)	Fixed displacement axial piston design
Speed	0-11rpm
Brake	Spring applied,hydraulically released with dual cushion relief
Tail swing radius	2030mm
Travel-
Motor(2)	Two-speed axial piston design
Final drive	Planetary gear reduction
Travel speeds-	Forward/Reverse
Low	3.8km/h
High	5.5km/h
HYDRAULIC CYLINDERS
Boom cylinder(1)
Bore diameter	110mm
Rod diameter	70mm
Stroke	880mm
Arm cylinder(1)
Bore diameter	100mm
Rod diameter	65mm
Stroke	860mm
Bucket cylinder(1)
Bore diameter	90mm
Rod diameter	60mm
Stroke	700mm
ELECTRICAL
Voltage	24 volts
Alternator	40 amp
Batteries(2) 12V	Heavy-duty
SERVICE CAPACITIES
Hydraulic tank
Refill capacity	100L
Total system	160L
Engine
w/filter change	15L
Fuel	120L
Radiator	10L
OPERATING WEIGHT
With 75kg operator	7200kg
Ground pressure	36KPa

After-sales Service
Warranty
Kudat grants our clients a twelve-month-period or 1500-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation. The defective part will be repaired or replaced free of charge at our discretion.

Spare Parts
Kudat is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.

Installation & Maintenance
Kudat is able to provide you with the overall installation of complicated machinery and equipment, for example--crawler crane,concrete batching plant, crushing machines etc.,allowing you to start the normal operation of cranes immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.

Training
Kudat offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.

Technical Advice
Kudat can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.

---
