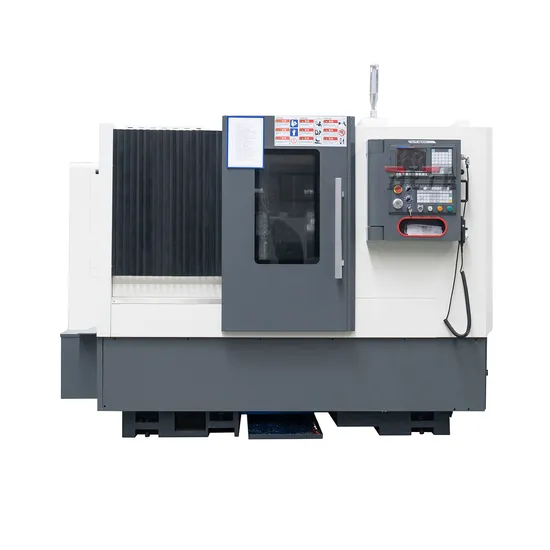

| Model | Unit | TCK50AY |
| Max.swing over bed | mm | Φ560 |
| Max.swing over carriage | mm | Φ260 |
| Max.processing length | mm | 400 |
| Max.processing diameter (disc type workpiece) | mm | Ø350 |
| Chuck size | inch | 8″ |
| X-axis travel | mm | 260 |
| Y-axis travel | mm | -20+80 |
| Z-axis travel | mm | 540 |
| Max.spindle speed | rpm | 3500rpm |
| Spindle speed step | Variable speed | |
| Spindle nose | A2-6 | |
| Spindle bore diameter | mm | Φ66 |
| Rapid traverse speed | m/min | X:18 Z:18 |
| Cutting feeding speed | mm/min | 1-15000 |
| X/Z-axis Repositioning Accuracy | mm | ±0.003 |
| X/Z-axis Motor torque | NM | 15/10(X-axis with brake) |
| Spindle motor power | KW | 11 |
| Milling motor power | KW | 0.75/1.5 |
| Size of tool bar section | mm | 20x20 |
| Max. Boring tool diamter | mm | 32 |
| Turret | 12 station power turret with Y-axis TCSDY-80-12 | |
| Turret tolder | BMT45(ER20) | |
| Sleeve diameter | mm | 70 |
| Sleeve stroke | mm | 80 |
| Tailstock travel | mm | 450 |
| Total power capacity | KVA | 22 |
| Cutting water tank capacity | L | 90 |
| Overall size (LxWxH) | mm | 2600*1850*2100 |
| Machine weight | KG | 3400 |
