Warping Machine for Medical Gauze Weaving

US$35,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
JLH788
Computerized
Computerized
Precision
High Precision
Certification
CE, ISO9001: 2000
Warranty
2 Years
Customized
Customized
Condition
New
Working Width
190cm-360cm
Speed
150-300m/Minitue
Transport Package
Metal Box
Specification
for cotton medical gauze using
Trademark
YGA
Origin
China
HS Code
84459000
Production Capacity
50 Sets/ Year

Product Description

Direct Warping Machine Warping is the process Where ends form a numbers of cons cheeses are collected to form a sheet of yarn comprising of pre-deter mind numbers , length, tension and with which goes to form the weavers beam. Yarn in the sheet will be of some tension, uniform spacing and parallel to each other and will be wound on to a beam called warpers beam.

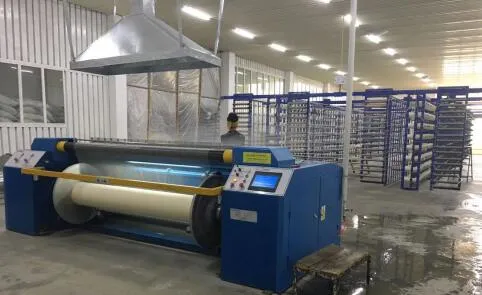

YGA-1High Speed Warping Machine
It is used for cotton yarn wraping in the beam,ready for weaving machine
1 warping machine can service for 50-80 sets air jet loom

It is a popular model warping machine for medical gauze weaving mill.
Main Specification and Technical Data
Item Main Specification and Technical Data

Frame head
Dia. of Warp Beam Flange:≤800mm;
2,Winding Width:2100mm(the length of press roller:1860mm);
3,Warping Speed:≤400m/min;
4,Beam direct driving, frequency conversion motor to realize warping speed step-less setting and constant linear Speed;
5,press roller and Beam double counting lengths, High Precision;
6,Pneumatics Warp-Beam mounting and doffing ;
7,Warping Motor:15KW;
8,W type adjustable reed, Electric control density and wagging;
9,Equipped with multi-function interface panel, easy to operate;


Warp Creel
1,Warp Creel Type, V Shape turning-over style, outside guide yarn;
2,No.s of Ends :2208Ends;
3,Pitch of Spindles :Up-down 260mm×Front-back 260mm;
4,No.s of Layer:8 Layer;
5,Fitted with 2 upright Colum Tensor
6,Yarn Bobbins as parallel alignment;
7,Infrared photoelectric Warp stop motion,

Major disposition
Order
Numbe-r

Model

Name

Numbers

Manufacturer
1 6ES7-214-1BDF23-0XA0 CPU 1 Siemens
2 222-1HF22-0XA0 Module 1 Siemens
3 A1000 Inverter 1 YASKAWA
4 506MV Touch Screen 1 Winview
5 CJX2-4011 Contactor 2 Schneider
6 CJX2-0901 Contactor 3 Schneider
7 S-145-24 Power Switch 1 Taiwanmw
8 HH52P Relay 5 Schneider
9 E2E-X10ME1 Proximity Switch 3 RK
10 NF63A Air Switch 1 Schneider
11 C65N3P Circuit Breaker 1 Schneider
12 C65N2P Circuit Breaker 3 Schneider
13 RT18-32 Fuse 3 Schneider
14 ZB2-BZ102C Push-button 3 Schneider
15 TRD-J360-RZ Encoder 2 Koyo
16 Bearing TWB
17 Pneumatic Element Airtac
